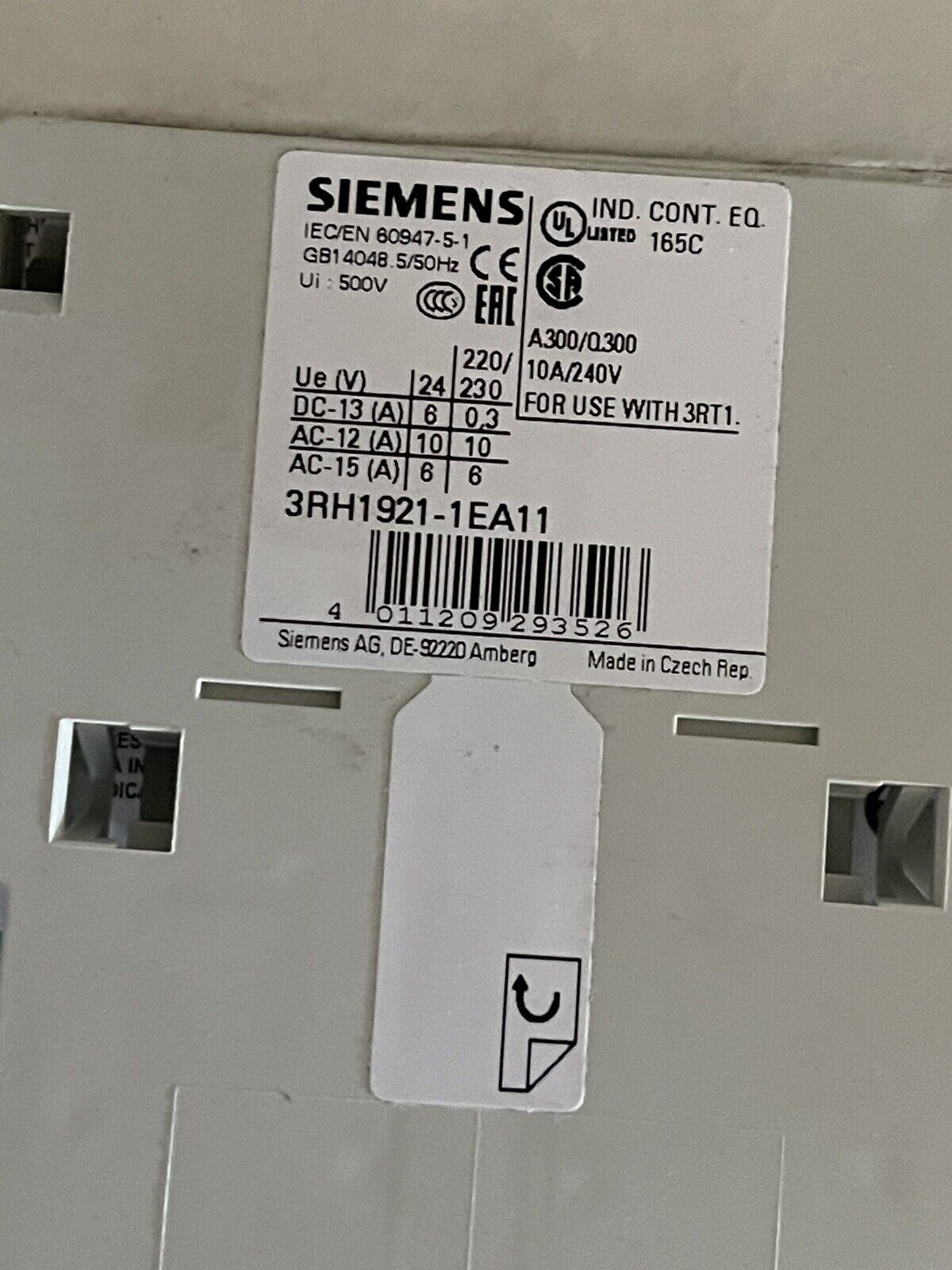

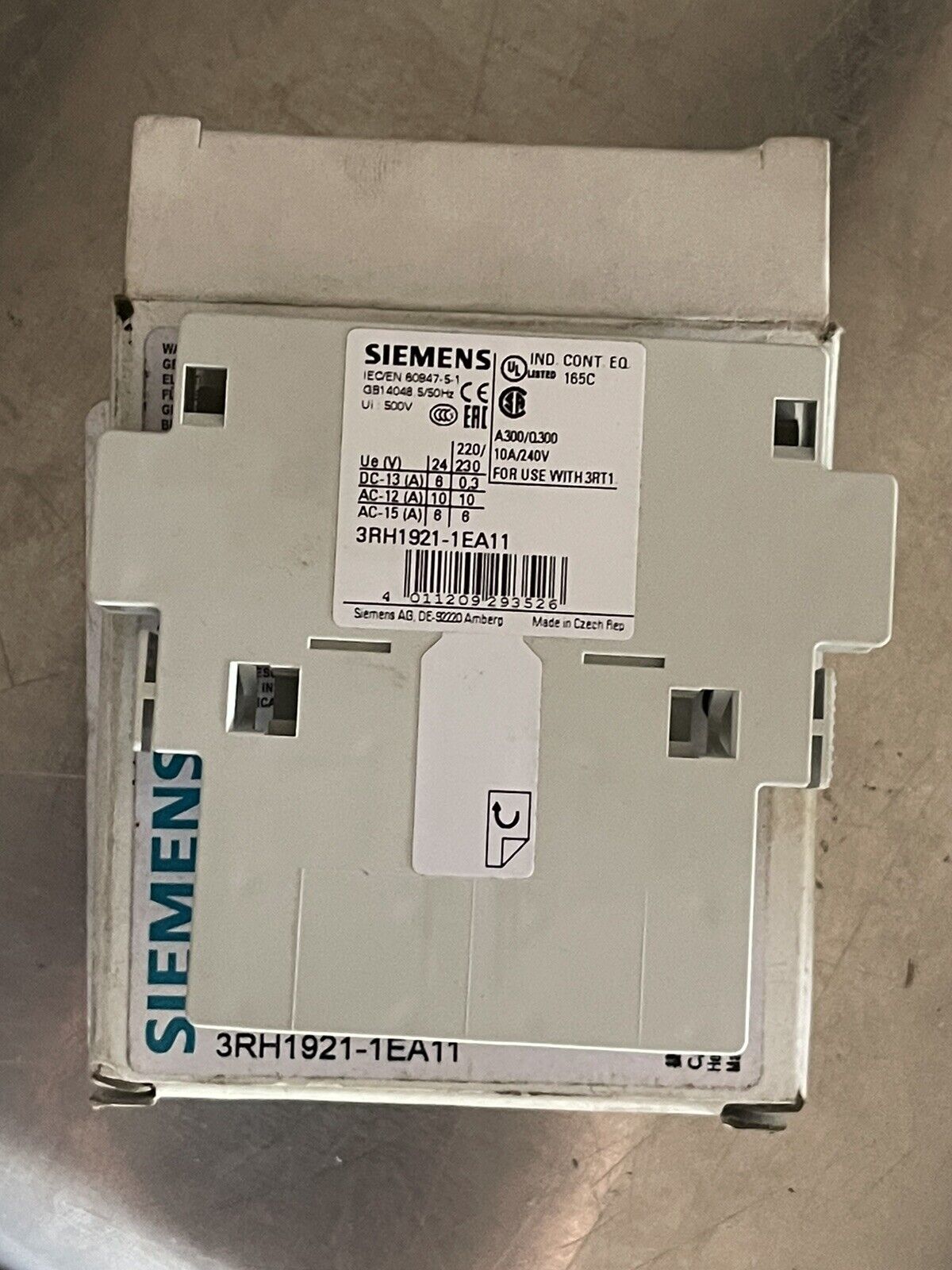

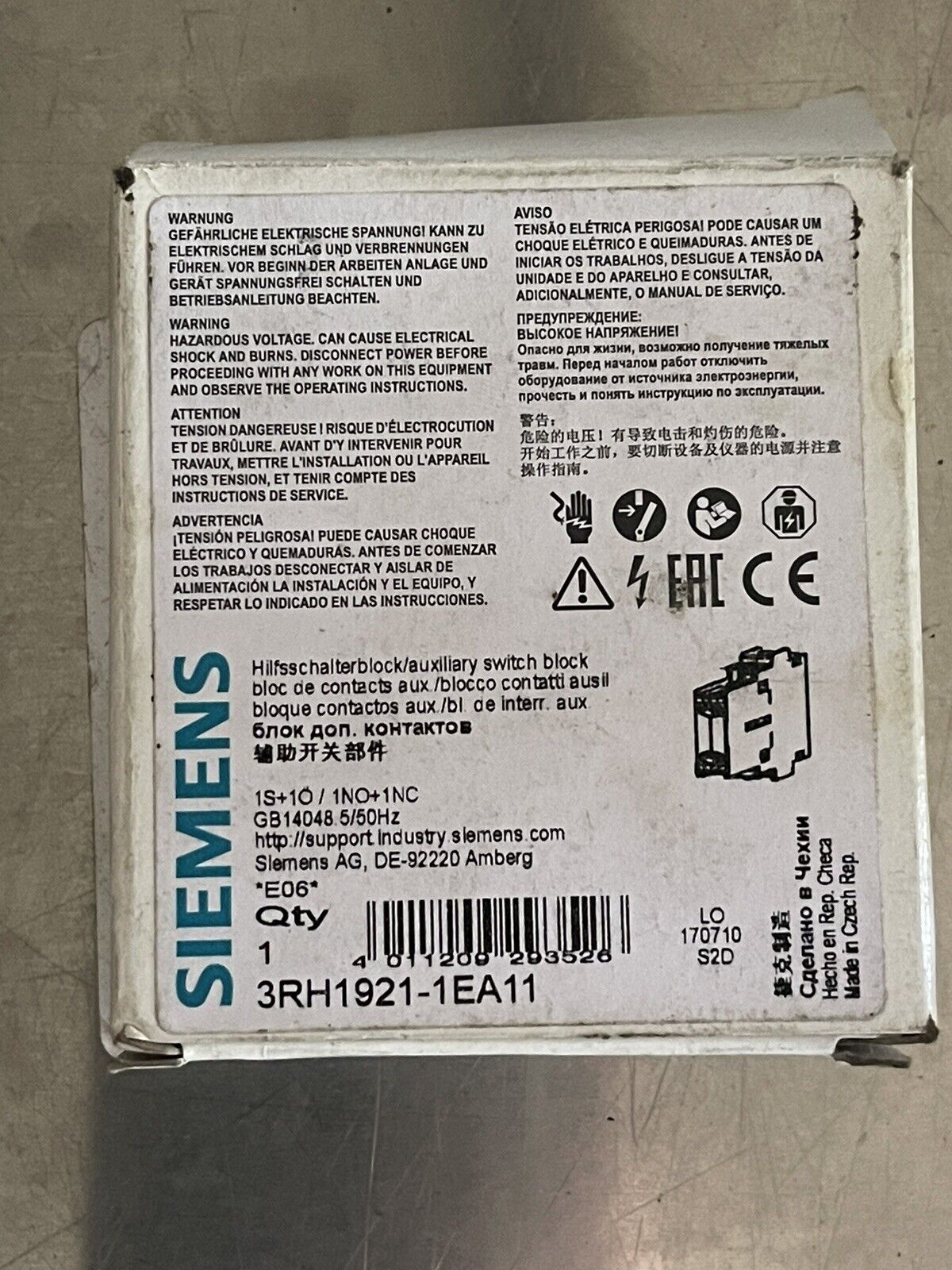

SIEMENS 3RH1921-1EA11 AUXILIARY SWITCH BLOCK, 1NO + 1NC
SIEMENS 3RH1921-1EA11 AUXILIARY SWITCH BLOCK, 1NO + 1NC
Regular price
$24.99 USD
Regular price
Sale price
$24.99 USD
Unit price
per
Couldn't load pickup availability
SIEMENS 3RH1921-1EA11 AUXILIARY SWITCH BLOCK, 1NO + 1NC
Our items are industrial surplus. Original packaging may have shelf wear or be damaged. The item itself will be new and unused.
SPECIFICATIONS:
- Type: 3RH1921-1EA11
- EAN: 4011209293526
- Description: Auxiliary switch block, 1 NO + 1 NC, EN 50005 on the side, 10 mm, screw terminal, Size S3 ... S12 for motor contactors, 2-pole, 2nd lateral auxiliary switch.
- Frame size: S0
- Mounting type: Snap-in
- IP rating: IP20
- Min. temperature: -25 °C
- Max. temperature: +60 °C
- Dimensions (W x H x D): 10 x 80 x 71 mm
- RoHS-compliant: Yes
- Model: Top mounting
- Rated operation current Ie (at AC-15, 230 V): 6 A
- Type of electric connection: Screw connection
