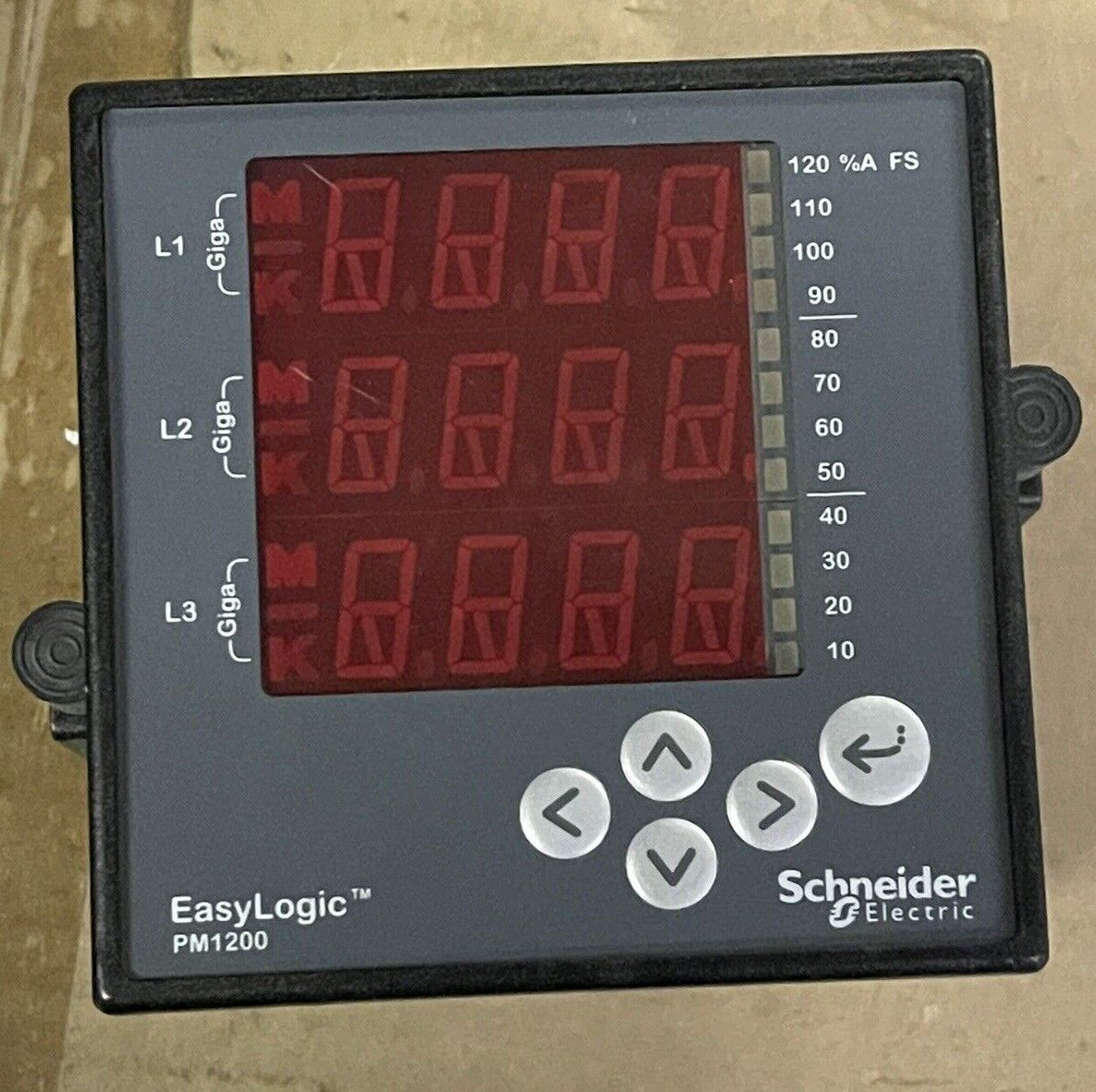

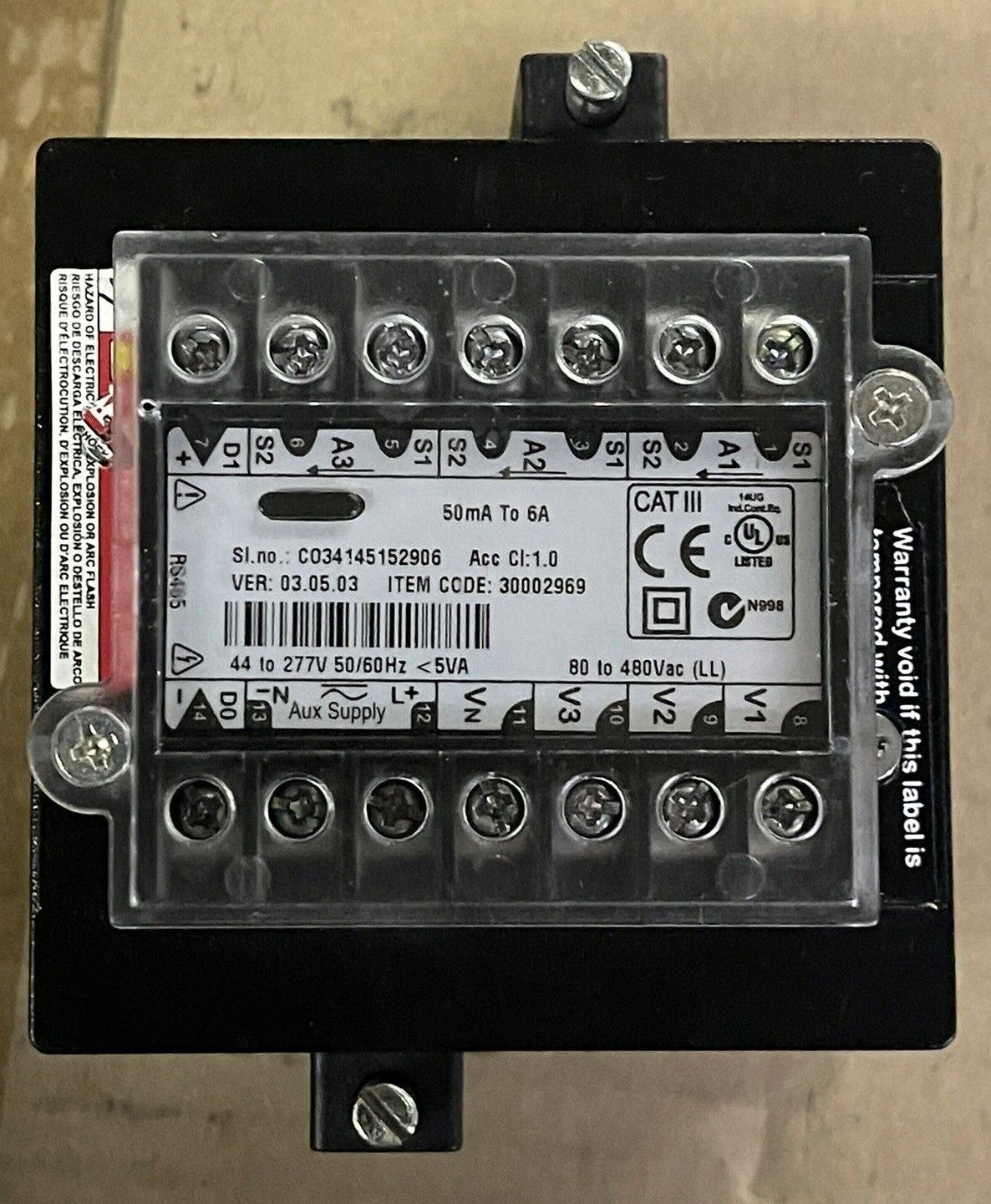

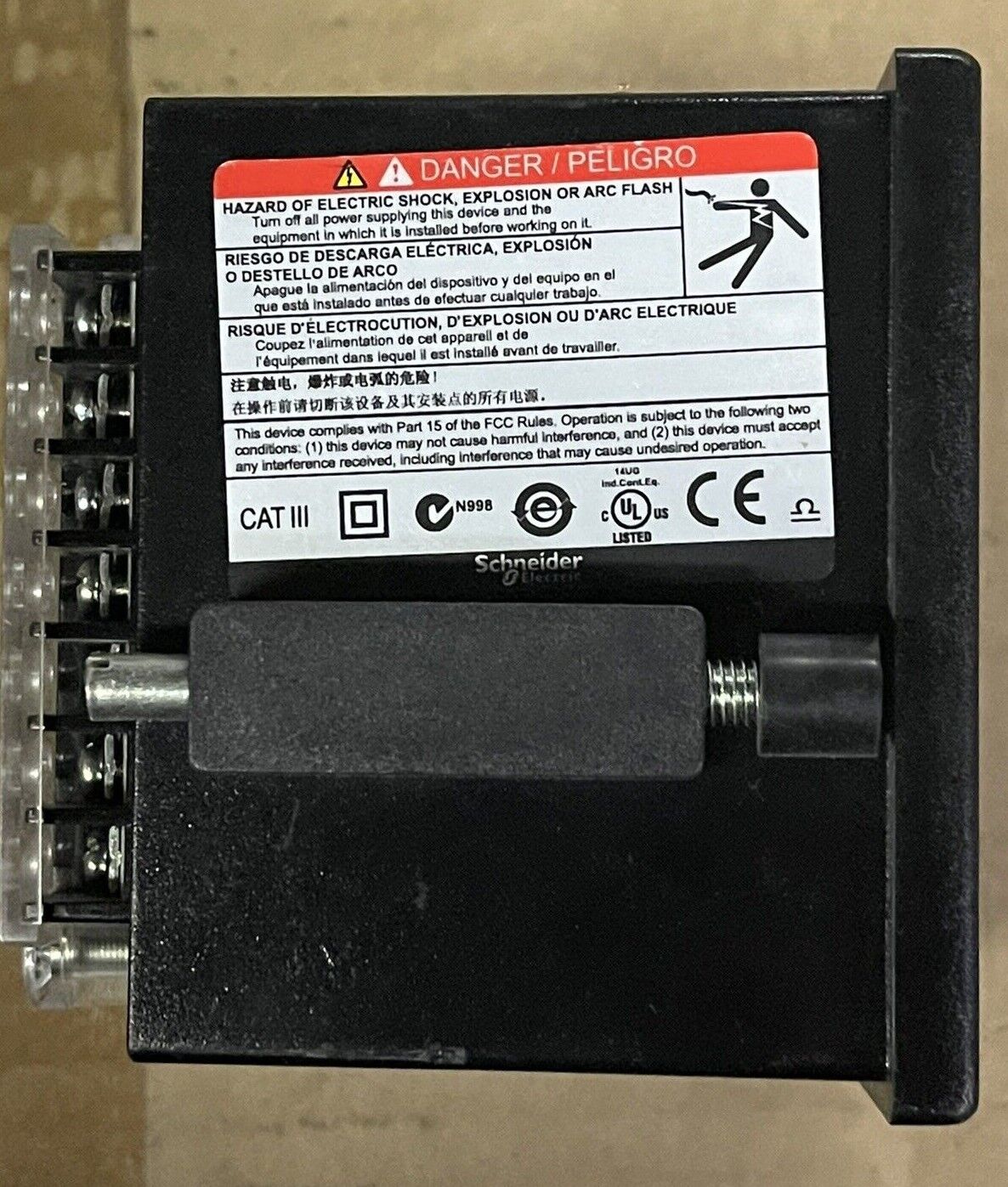

SCHNIDER ELECTRIC EasyLogic PM1200 POWER & ENERGY METER
SCHNIDER ELECTRIC EasyLogic PM1200 POWER & ENERGY METER
Regular price
$149.99 USD
Regular price
Sale price
$149.99 USD
Unit price
per
SCHNIDER ELECTRIC EasyLogic
PM1200 POWER & ENERGY METER
SPECIFICATIONS:
- Product type: Power Meter
- Power quality analysis: Up to the 9th harmonic
- Type of measurement:
- Current
- Voltage
- Frequency
- Active and reactive power
- Active and reactive energy
- Power factor
- Supply voltage: 44...277 VAC 50/60 Hz, 44...277 VDC
- Network Frequency: 50/60 Hz
- Maximum Power Consumption (VA): 3 VA 240 VAC
- Display Type: LED
- Display Resolution: 3 lines with 4 digits
- Sampling rate: 20 samples/cycle
- Measurement current: 50…6000 mA
- Input type: Current 0...5 A <= 0.1 Ohm), current 0...1 A <= 0.1 Ohm)
- Measurement voltage: 80…480 V AC 50/60 Hz phase to phase, 0…999000 V AC 50/60 Hz with external VT
- Measurement accuracy:
- Power 1 %
- Current 1 %
- Voltage 1 %
- Energy 1 %
- Frequency 0.1 %
- Power factor 1 %
- Apparent power 1 %
- Accuracy class: Class 2 reactive energy IEC 62053-23, Class 1 active energy IEC 62053-21
- Communication port protocol: Modbus 19.2 kbauds
- Communication port support: RS485
- Mounting Mode: Flush-mounted
- Mounting support: Panel
- Type of Installation: Indoor
- Standards: IEC 62053-21, IEC 62052-11
