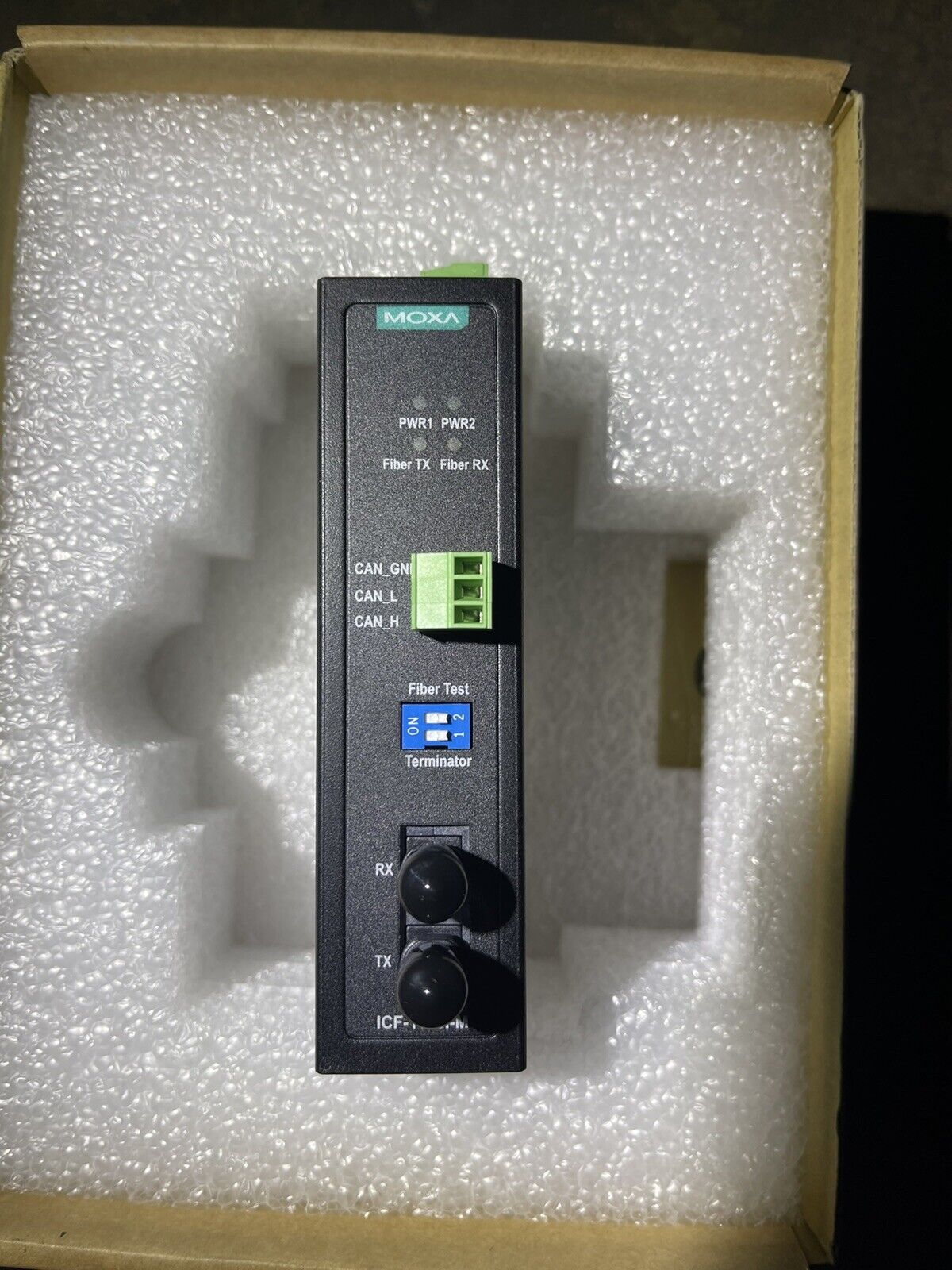

MOXA INDUSTRIAL CAN BUS TO OPTICAL FIBER CONVERTER ICF-1170I-M-ST V1.0.1

$499.99 USD

Sale Sold out

Our items are industrial surplus. Original packaging may have shelf wear or be damaged. The item itself will be new and unused.

SPECIFICATIONS:

Serial Interface:

Optical Fiber: 100BaseFX ports (multi-mode ST connector)

CAN Interface:

Isolation: 2 kV (built-in)
Number of Ports: 1
Signals: CAN_L, CAN_H, CAN Signal GND
Terminator: N/A, 120 ohms (by DIP)

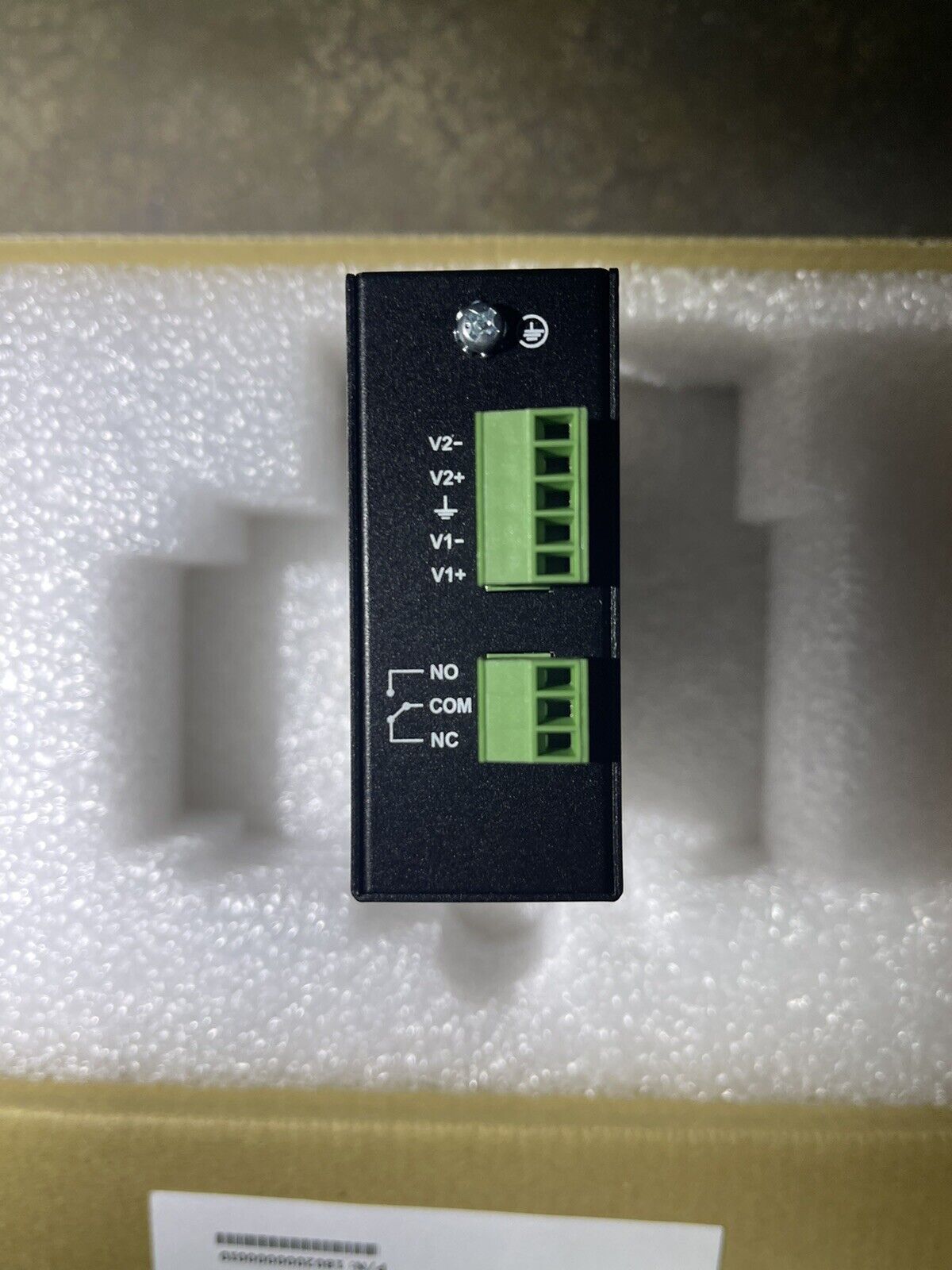

Power Parameters:

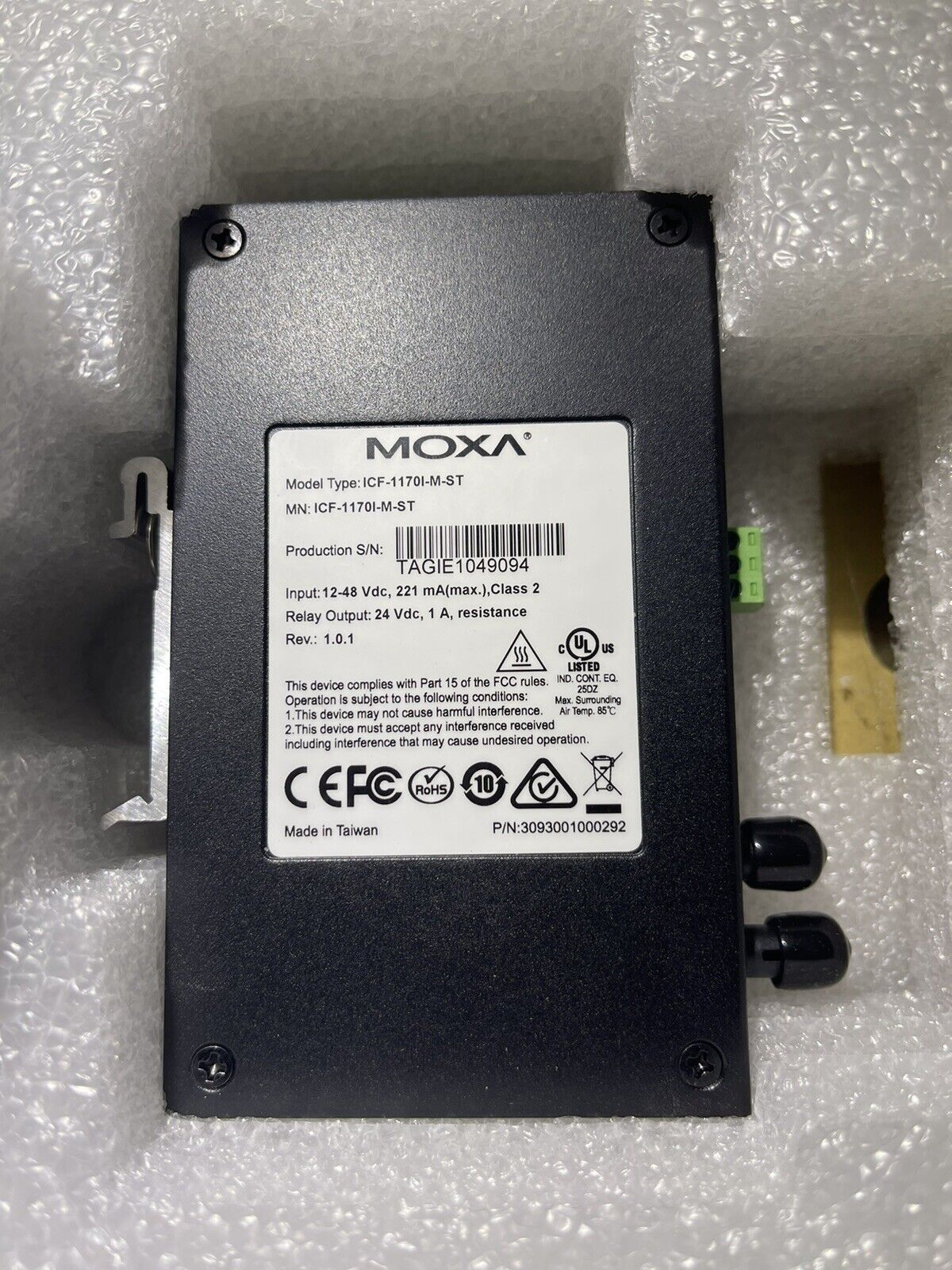

Input Current: 221 mA @ 12 to 48 VDC
Power Consumption: 221 mA @ 12 to 48 VDC
Input Voltage: 12 to 48 VDC
Number of Power Inputs: 2
Overload Current Protection: Supported
Power Connector: Terminal block (for DC models)

Weight/Dimensions:

Dimensions: 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight: 178 g (0.39 lb)
Installation: DIN-rail mounting
IP Rating: IP30

Temperature/Humidity Limits:

Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
