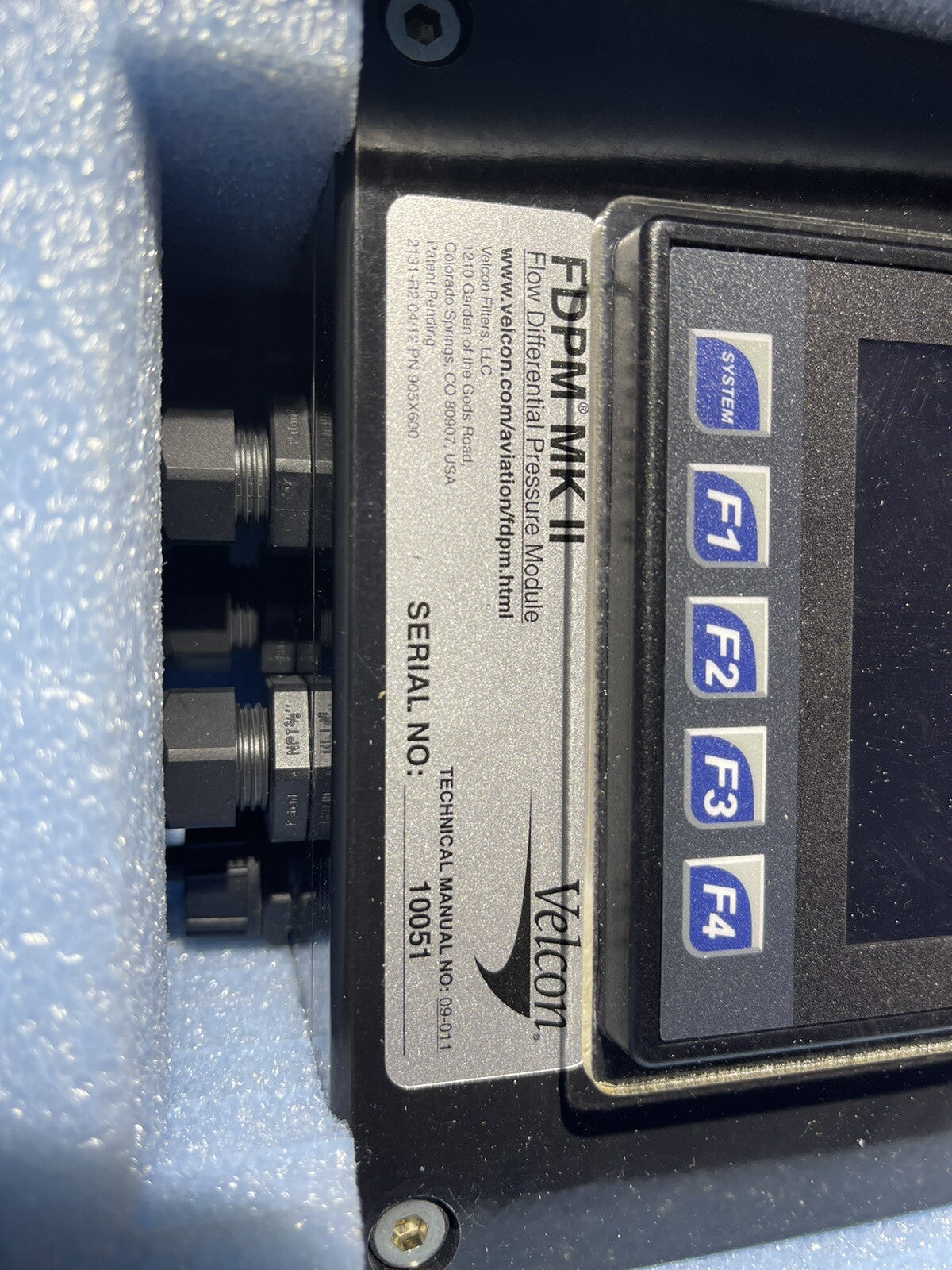

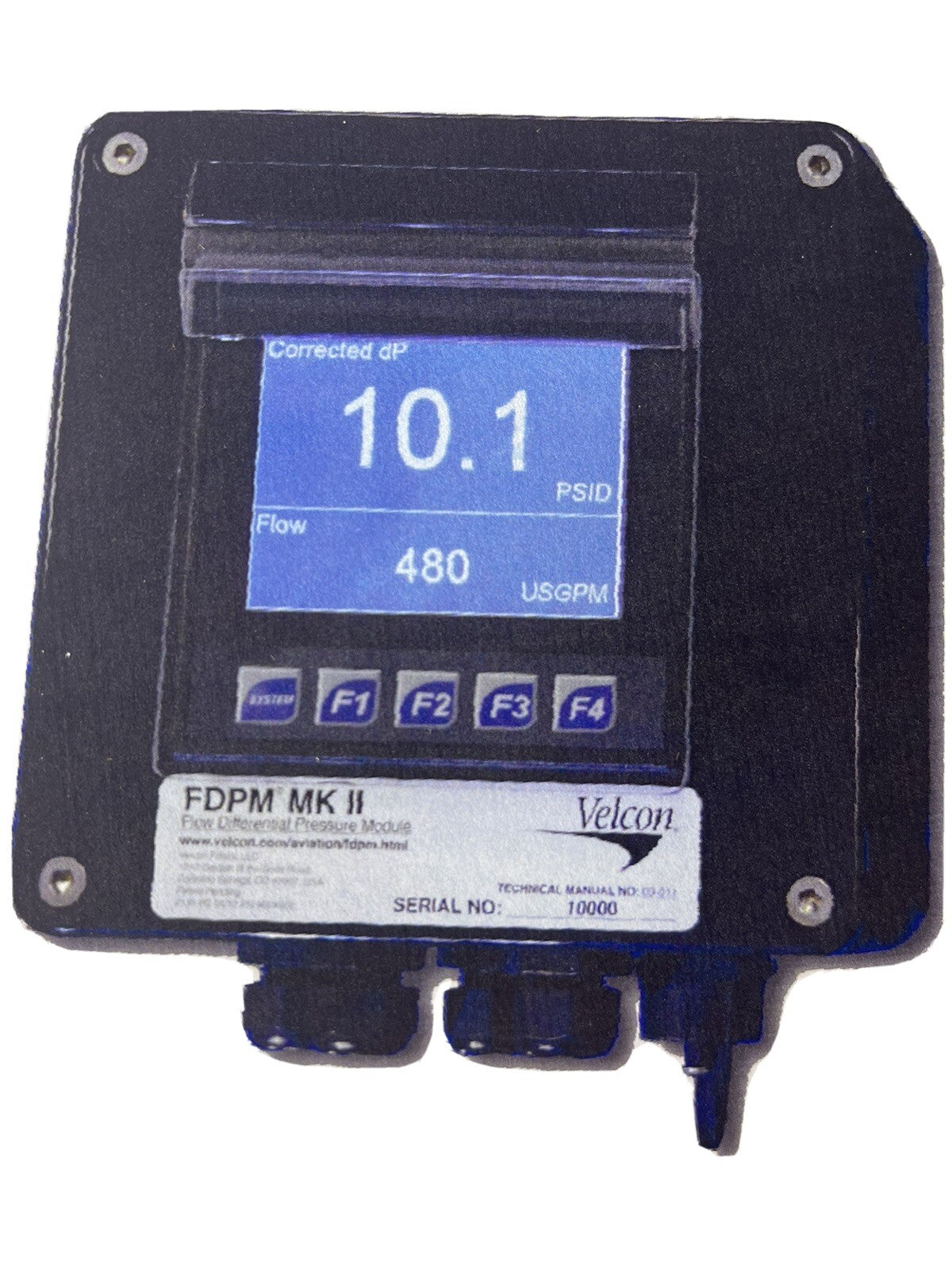

Velcon Flow Differential Pressure Module FDPM® MK II

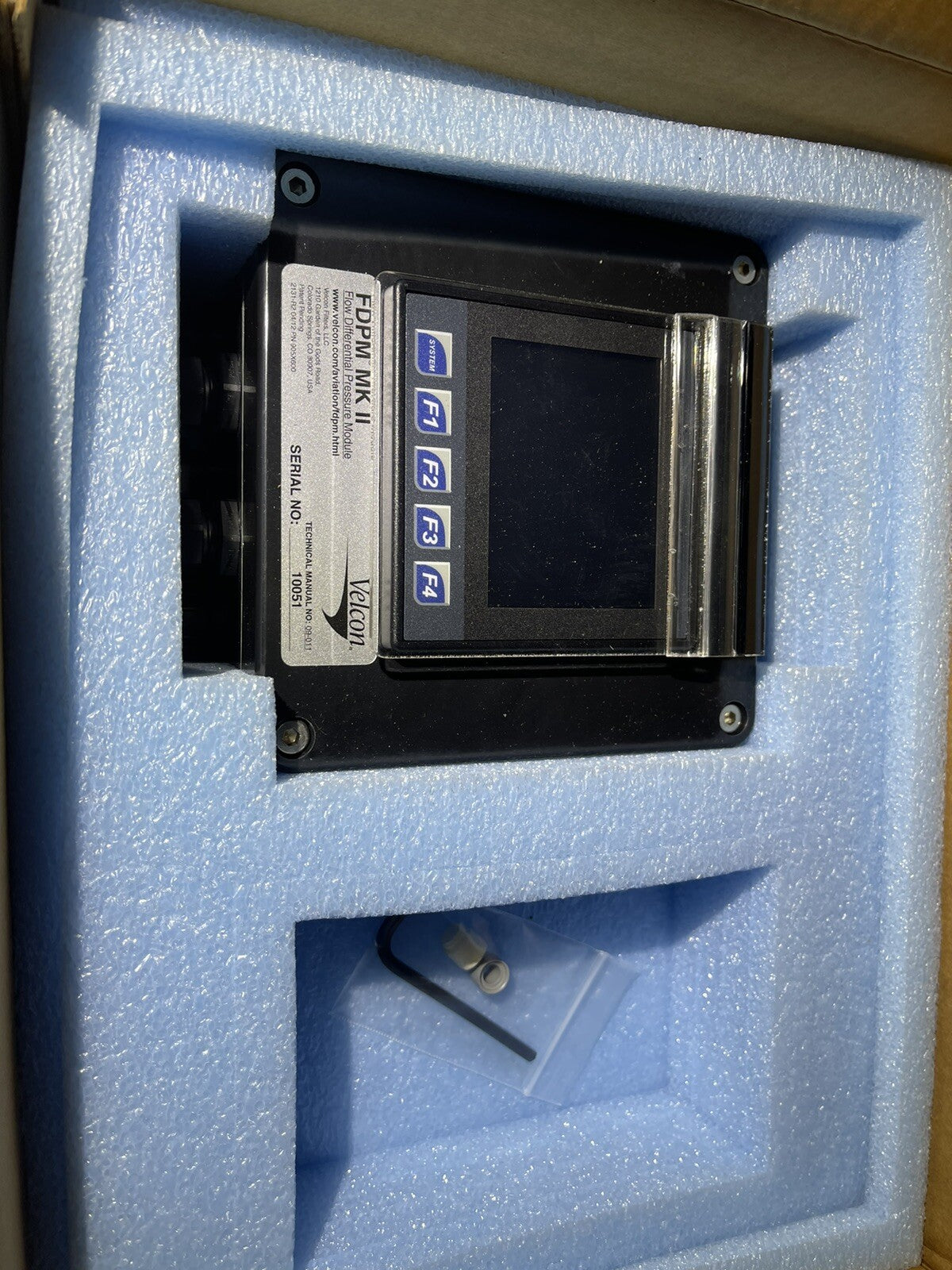

Our items are industrial surplus. Original packaging may have shelf wear or be damaged. The item itself will be new and unused.

Flow Differential Pressure Module FDPM® MKII automatically calculates condition of the filters inside a vessel based on the inputs from differential pressure and flow-rate sensors.

SPECIFICATIONS:

INPUTS:

12 -24VDC, 300 mA (Power), AC/DC Converter
Flow Rate Input: 0-8 Volts Minimum (24 Volts Max)
One of the Following:
2 Pressure Transducers: 4 -20 mA
1 Differential Pressure Transducer: 4 -20 mA

DEADMAN SWITCHING RELAY: 3A @ 250 VAC Max

VISUAL OUTPUTS/INDICATORS

Interactive Touch Screen
Daylight Readable
Optional Amber Light: Warning Indicator
Optional Red Light: Critical Indicator
Corrected Differential Pressure
Actual Differential Pressure
Flow Rate
Peak Corrected and Actual Differential Pressure
Real-Time Corrected Differential Pressure Charting
Sudden DP Rise or Drop Alarm

DATA LOGGING

Removable Micro SD Card (Included)
>36 Months Data (MS Excel Compatible)
60 Second Logging Interval (User Configurable)
Data Download via USB (Optional)

DATA OUTPUTS: RS232 (ASCII Serial Data Stream)

MEASUREMENT UNITS: PSI, USGPM / BAR, LPM

ALARM TRIGGERS

Warning Alarms (Amber Light)
12 PSI or 0.8 BAR (User Configurable)
Pressure Greater than the System Rating
Change in DP (User Configurable)
Critical Alarms (Red Light)
External Switch Relay (Deadman)
15 PSI or 1.0 BAR (User Configurable)
Change in DP (User Configurable)

WEIGHT : 4 pounds (1.8 kg)

SAFETY COMPLIANCE: IP 65, NEMA 4X, ATEX Directive Class 1 Zone 2 Group D
