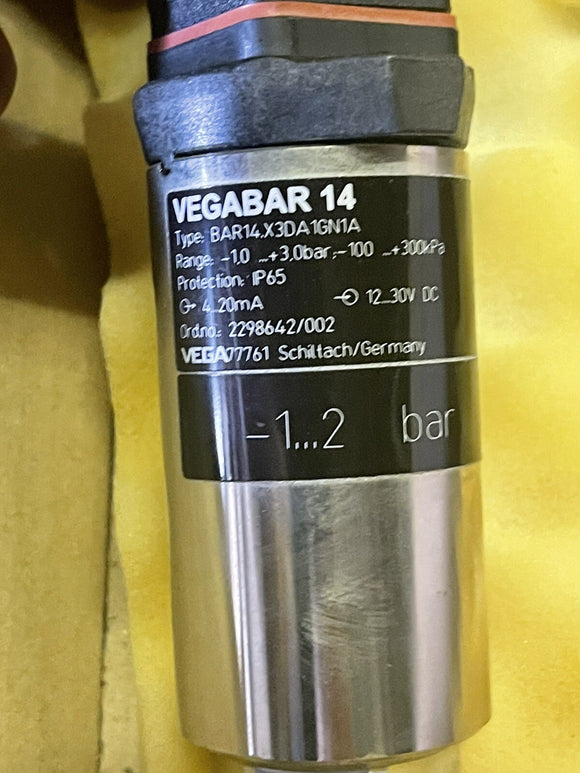

VEGA VEGABAR 14 PROCESS PRESSURE MEASUREMENT TRANSMITTER
BAR14.X3DA1GN1A
Our items are industrial surplus. Original packaging may have shelf wear or be damaged. The item itself will be new and unused.
SPECIFICATIONS:
- Item: Pressure Measurement Transmitter
- Type: BAR14.X3DA1GN1A
- Suitable for hazardous areas: Yes
- Measuring Range: -1 … +3.0 bar / -100 … +300 kPa
- Process Temperature: -40 to 100 Deg. C
- Ambient Temperature: -40 to 80 Deg. C
- Accuracy: 0.3%
- Level Sensor Protection Rating: IP65
- Signal Output: 4-20 mA
- Input Voltage: 12 - 30 VDC
© Energy Power Systems LLC. 2021 - 2022
