These are New surplus. They have never been used or installed. The original packaging is missing.

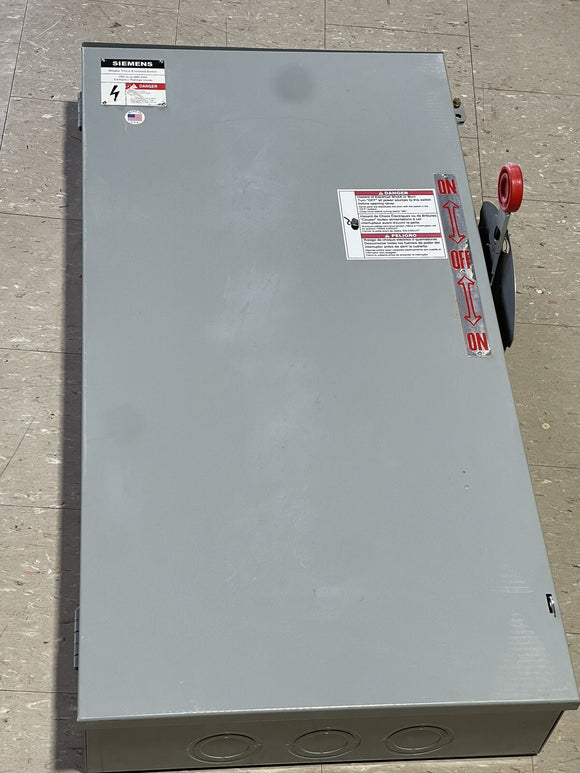

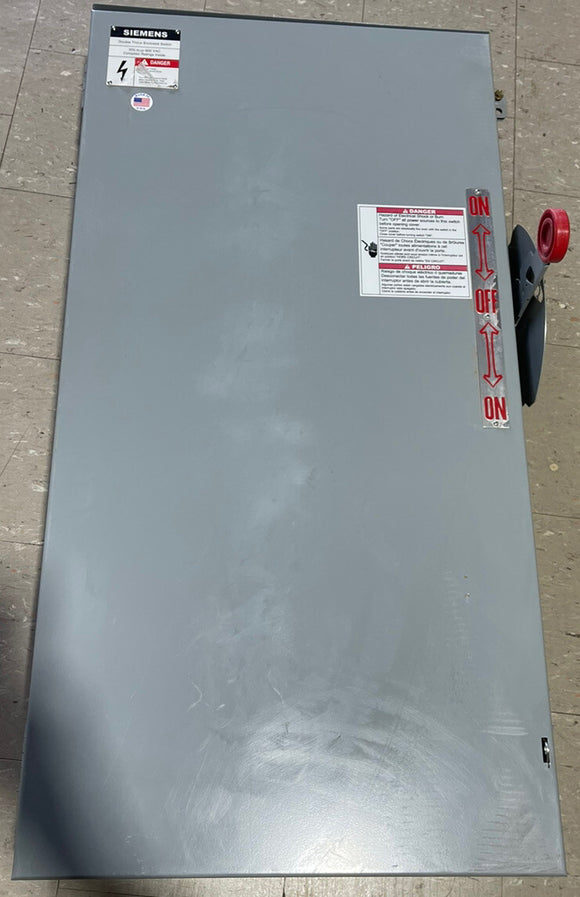

Paint may have scuffs or scratches from shelf ware. The picture in the listing is just of one unit, we can send additional pictures of the unit that will ship out if needed.
Siemens NFR454DTK, 200 AMP - Double Throw Safety Switch, 200A, 4P, Type 3R.
Heavy Duty Double Throw
Safety Switches
Type 3R (Outdoor)
Standards and Ratings
• UL Listed under file #E5239
• Meets UL98 for switches and UL50
for enclosures
• Suitable for use as Transfer
Equipment on optional standby
systems as defined by Article 702
of the NEC
• Meets NEMA Standard KS-1 for
enclosed switches (Type HD)
• Meets NEC wire bending space
requirements
• Rated 10,000 AIC 1
• Quick make and break mechanism

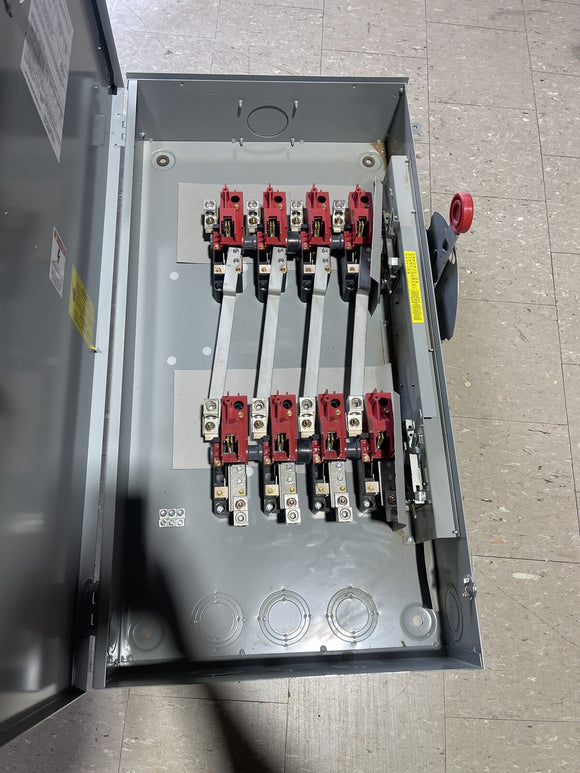

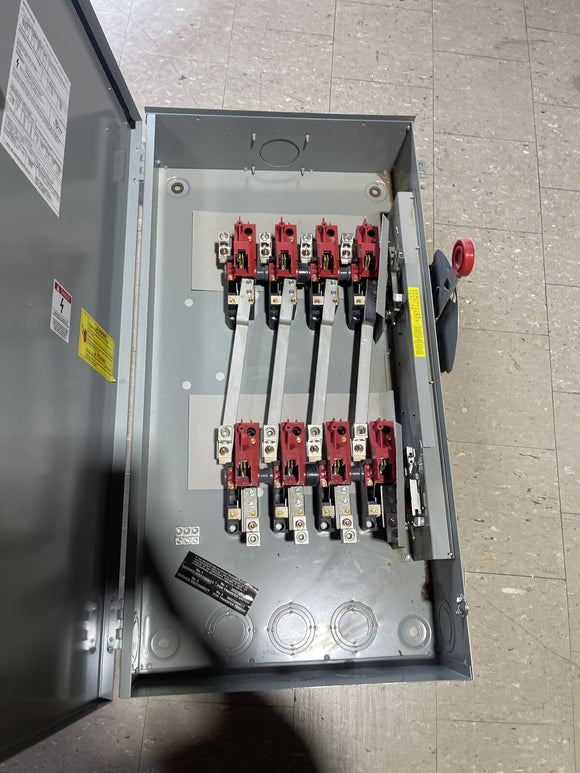

• Visible Blade, double break
switching action
• Dual cover interlock
• Handle is pad-lockable in the
OFF position
Accessories
Catalog Number Description
DS200GK Equipment Ground Kit
DS200EK1 Auxiliary Switches (1-NO & 1-NC)
DS200EK2 Auxiliary Switches (2-NO & 2-NC)
SSH100 1.00” Hub
SSH150 1.50” Hub
SSH200 2.00” Hub
Horsepower Ratings - 600 Volts
Catalog 1 Phase, 480V AC 3 Phase, 600V AC 250V
Number 240V 480V 600V 240V 480V 600V DC
NFR454DTK 15 50 50 60 125 150 40 (Std)
Catalog Shipping
Number Volts Amps Description Weight (lbs.)
NFR454DTK 600 200 4 Pole, Non-Fusible 85
1 Rated 100,000 AIC when protected by Class R fuses. Fuse ampere rating must not exceed switch
ampere rating
