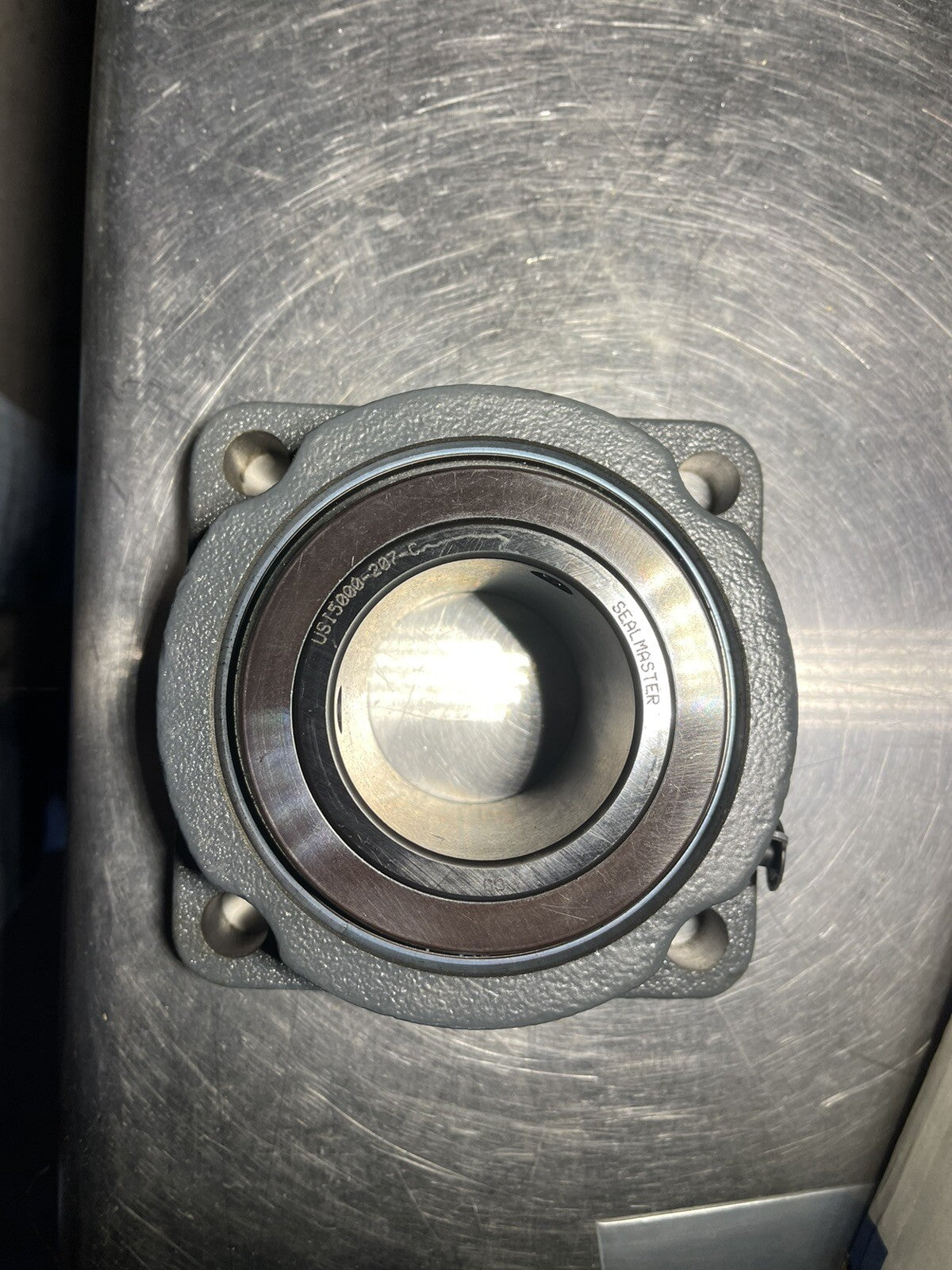

SEALMASTER USFB5000207C DA SPHERICAL ROLLER BEARING, 27/16" BORE (737196)

Name: SEALMASTER USFB5000207C DA SPHERICAL ROLLER BEARING, 27/16" BORE (737196)
Brand: SealMaster
SKU: 737196
Price: 389.99 USD
Availability: InStock

$389.99 USD

Sale Sold out

ENERGY POWER SYSTEMS

Click here to visit our eBay Store

SEALMASTER USFB5000-207-C DA SPHERICAL ROLLER BEARING, 2-7/16" BORE (737196)

Our items are industrial surplus. Original packaging may have shelf wear or be damaged. The item itself will be new and unused.

SPECIFICATIONS:

Manufacturer: SealMaster
Catalog Number: USFB5000-207-C DA
MPN: 737196
Bolt Center Diameter (in): 6.75
Bolt Circle Diameter (mm): 171.5 mm
Bolt Center-to-Center Length (in): 4.765625 in
Collar OD (in): 4 in
Inner Race Length (in): 3.375 in
Bore Size - Inch: 2.4375 in
Foot Height (in): 1.03125 in
Bolt Size (in): 0.625 in
Housing Color: Gray
Locking Type: Collar Mount
Relubricatable: Yes
Lubrication: Lithium Complex NLGI 2 Grease
Retainer Material: Steel
Housing Construction: One Piece
Maximum Operating Temperature: 220 °F
Outer Ring Land Profile: Standard
Rolling Element: Spherical Roller
Replaceable Insert: Yes
Bearing Insert Coating: Black Oxide Coated
Misalignment Type: Dynamic
Housing Material: Cast Iron
Radial Static Load Capacity (lb): 59,535
Housing Type: Four Bolt Flange
Grease Fitting Thread Size: 1/8 NPT
Speed (Max): 1750 RPM
Misalignment: ±2.0° Misalignment - Dynamic
Seal Type: Double Lip Contact Seal
Radial Dynamic Load Capacity (lb): 44,691
End Cap: No
Internal Clearance: Standard
Insert Material: 52100 Bearing Steel, Black Oxided
Bore Shape: Straight
