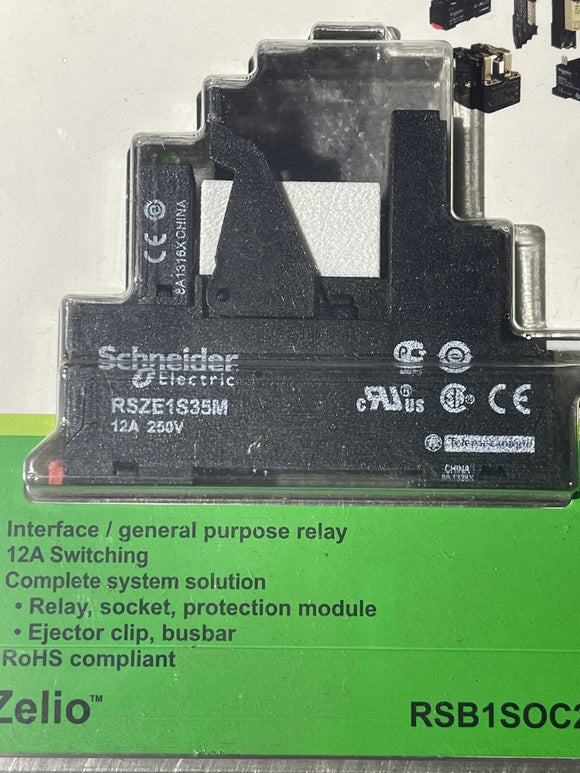

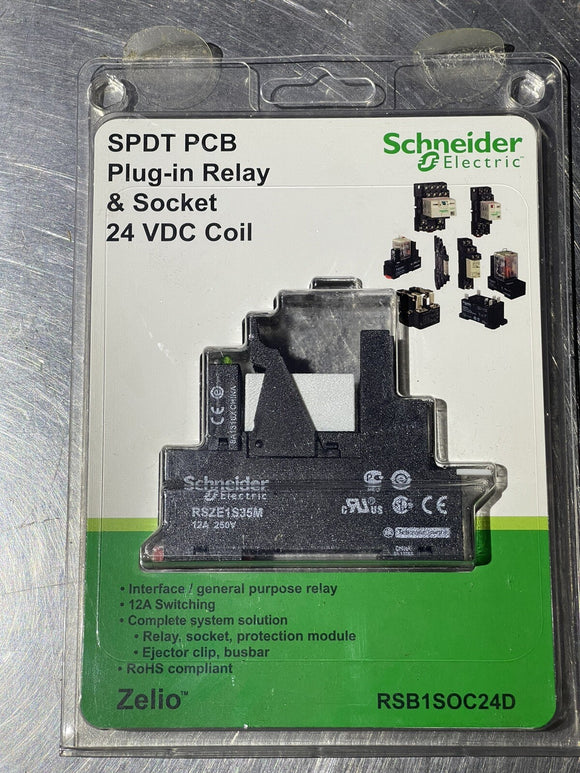

SCHNIDER ELECTRIC RSB1SOC24D SPDT PCB PLUGIN RELAY & SOCKET, 24 VDC COIL

SCHNIDER ELECTRIC RSB1SOC24D SPDT PCB PLUG-IN RELAY & SOCKET, 24 VDC COIL

SPECIFICATIONS:

• Series name: Slim Interface Relay
• Device short name: RSB
• Contacts type and composition: 1 C/O
• Contact operation: Standard
• [Uc] control circuit voltage: 24 VDC
• [Ithe] conventional enclosed thermal current: 12 A (-40…104 °F / -40…40 °C)
• Control type: Without push-button
• Shape of pin: Flat (PCB type)
• Average coil resistance: 1440 Ohm AC 20 °C +/- 10 %
• [Ue] rated operational voltage: 16.8...36 V DC
• [Ui] rated insulation voltage: 400 V EN/IEC 60947
• [Uimp] rated impulse withstand voltage: 3.6 kV IEC 61000-4-5
• Contacts material: Silver alloy (AgNi)
• [Ie] rated operational current: 12 A AC-1/DC-1) NO IEC; 6 A AC-1/DC-1) NC IEC
• Minimum switching current: 100 mA
• Maximum switching voltage: 250 VDC IEC
• Minimum switching voltage: 5 V
• Maximum switching capacity: 3000 VA/336 W
• Resistive rated load: 12 A 250 VAC, 12 A 28 VDC
• Minimum switching capacity: 500 mW 100 mA, 5 V
• Operating rate:  <= 600 cycles/hour under load, <= 18000 cycles/hour no-load
• Mechanical durability: 30000000 cycles
• Electrical durability: 100000 Cycles, 12 A 250 V, AC-1 NO; 100000 cycles, 6 A 250 V, AC-1 NC
• Operating time: 20 ms operating, 20 ms reset
• Average coil consumption: 0.45 W DC
