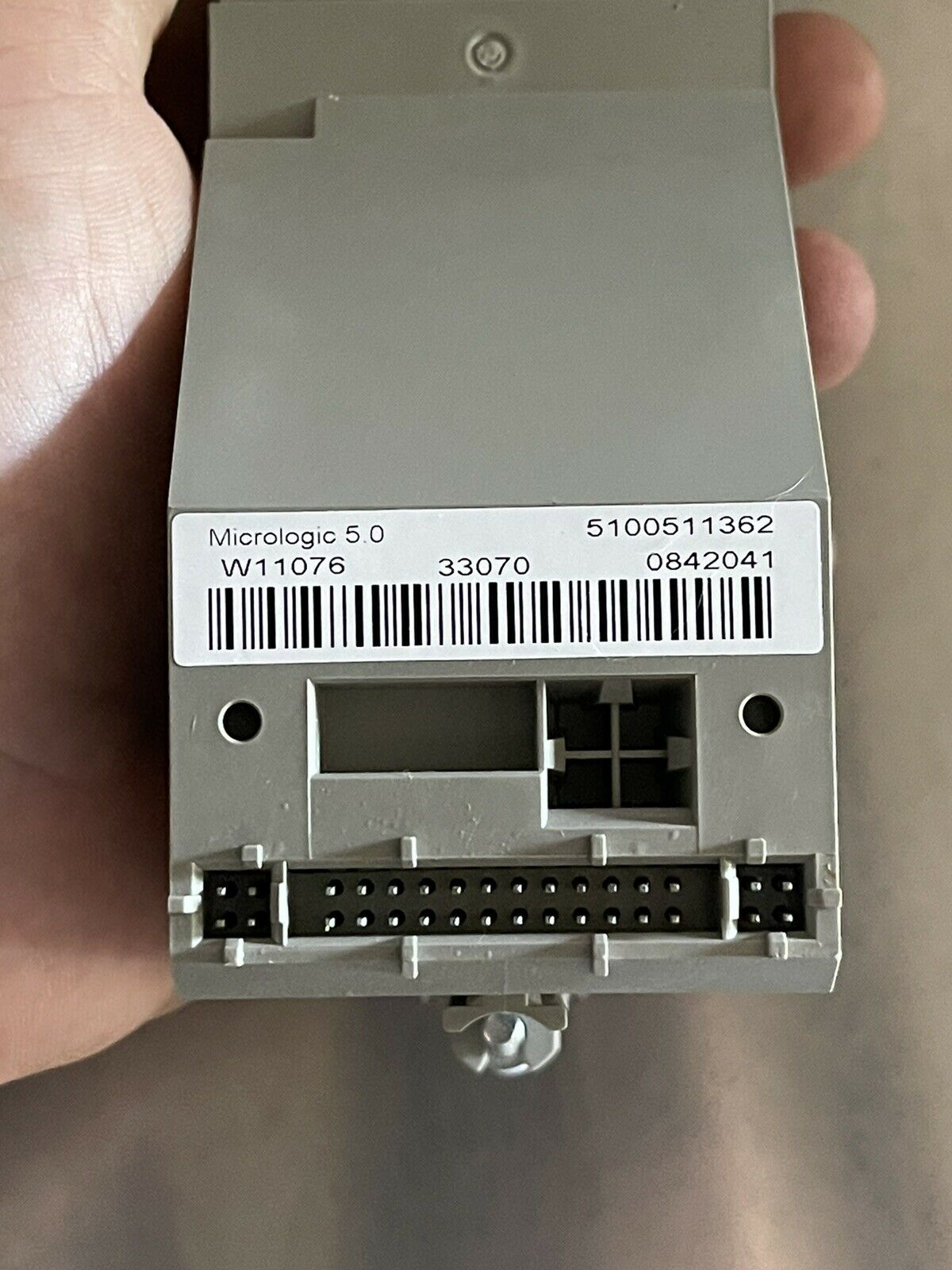

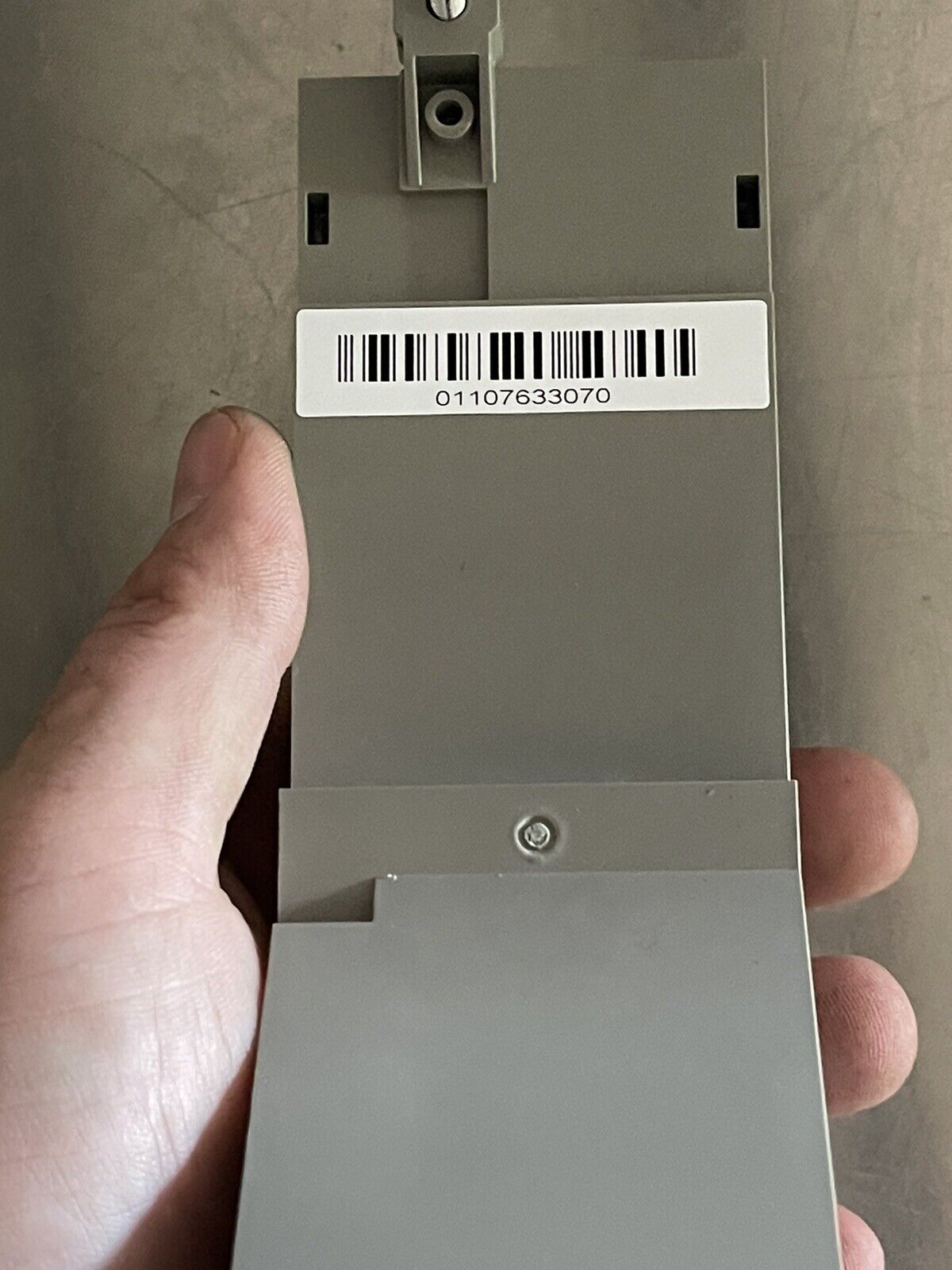

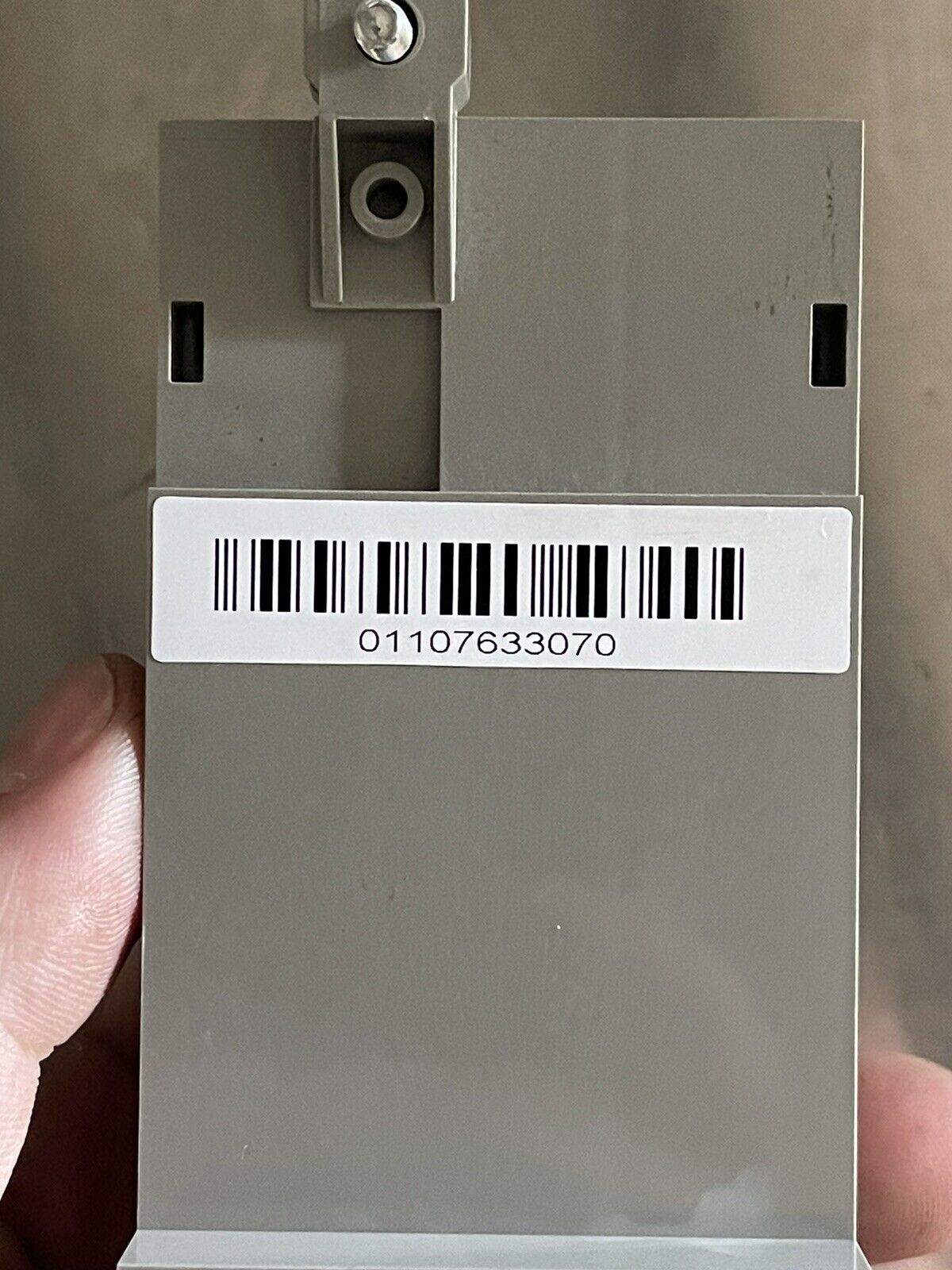

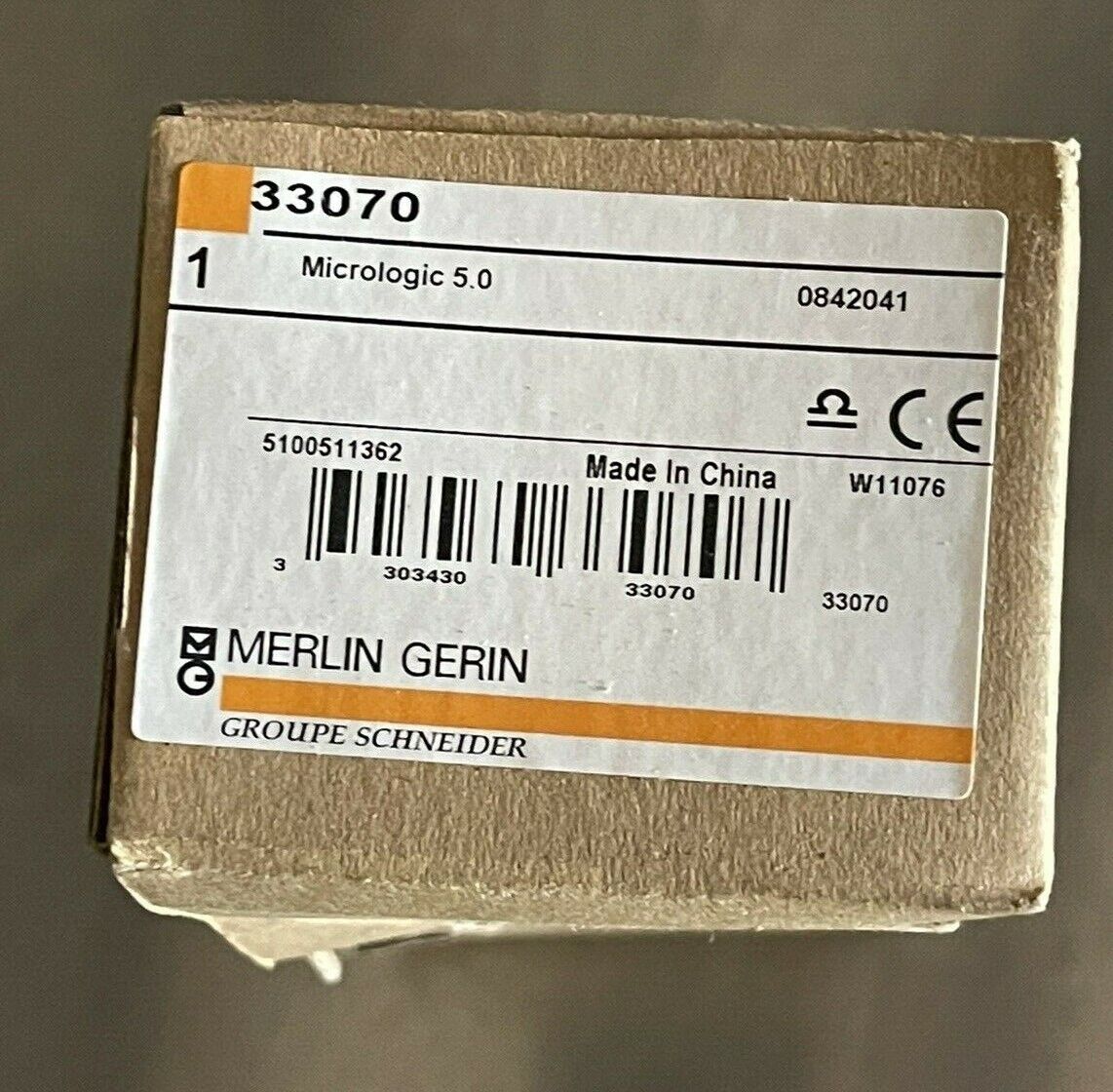

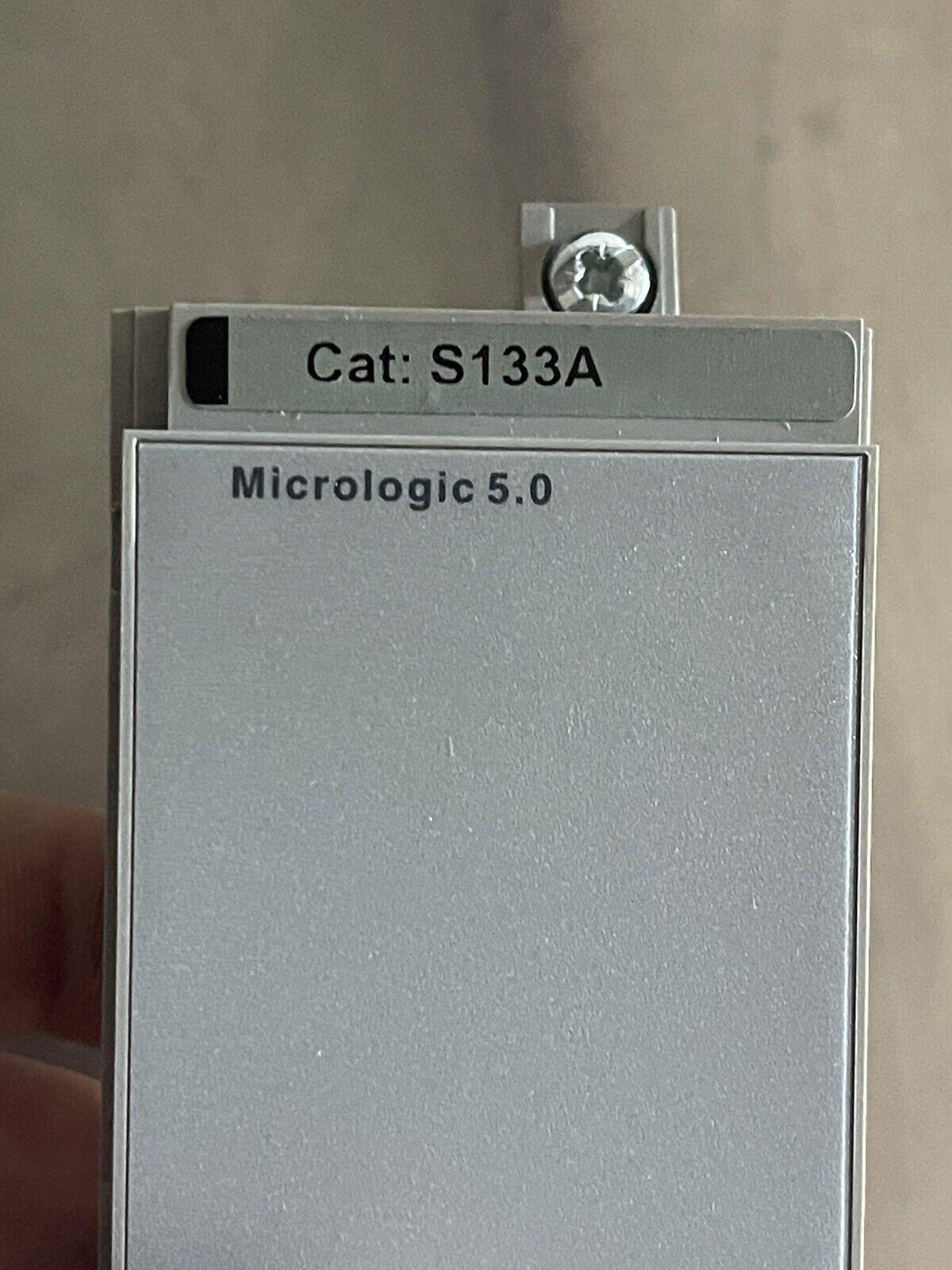

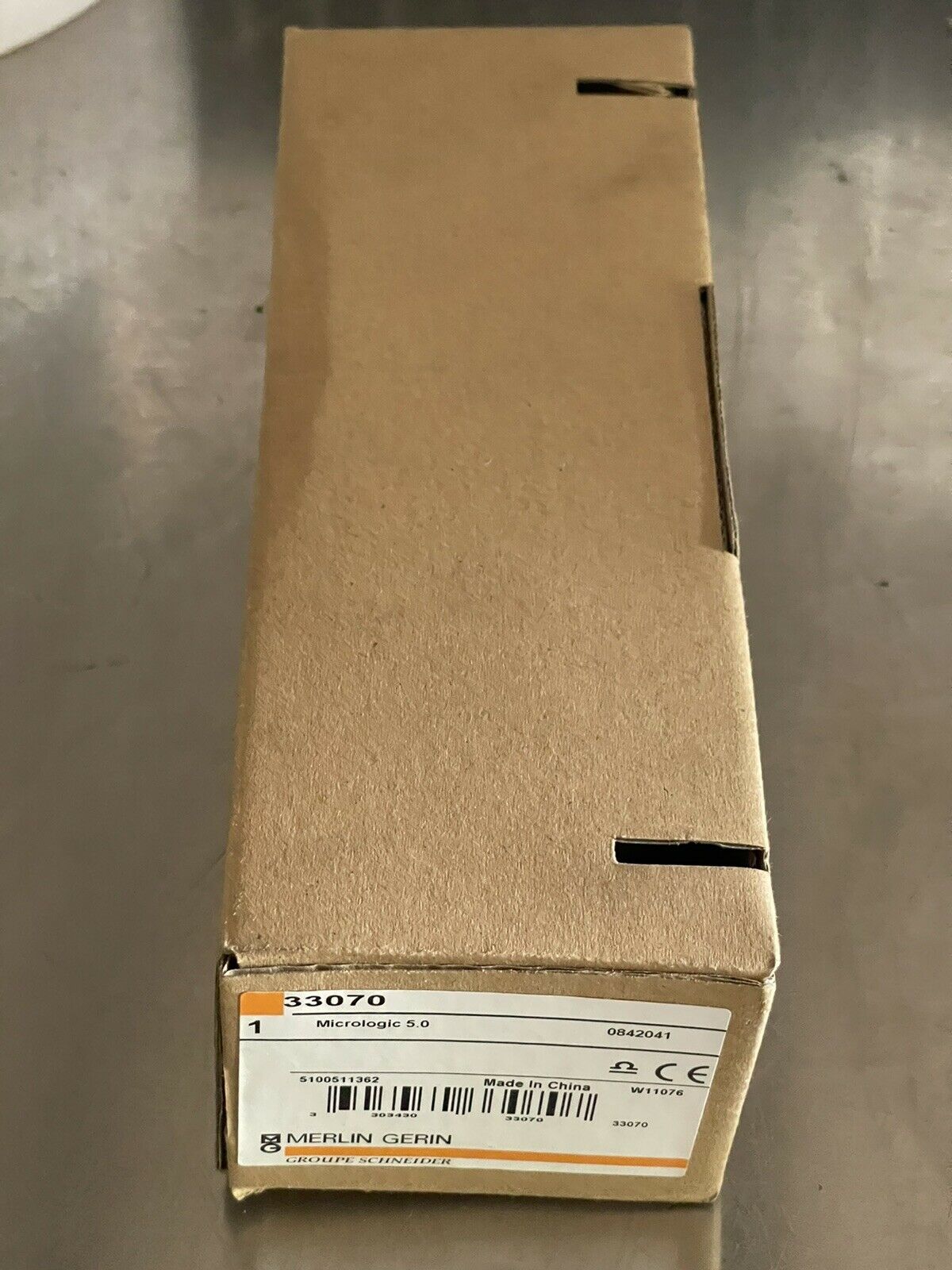

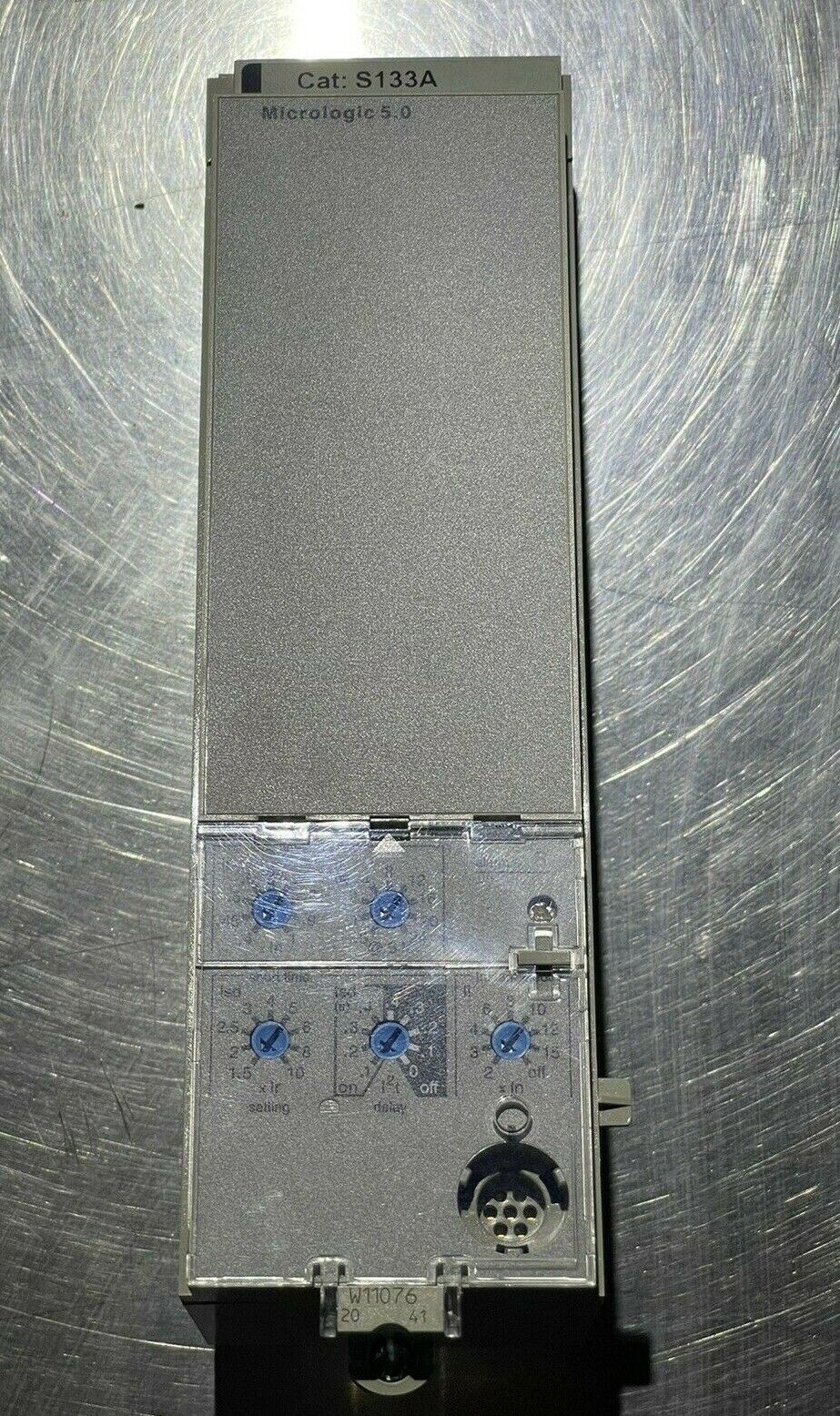

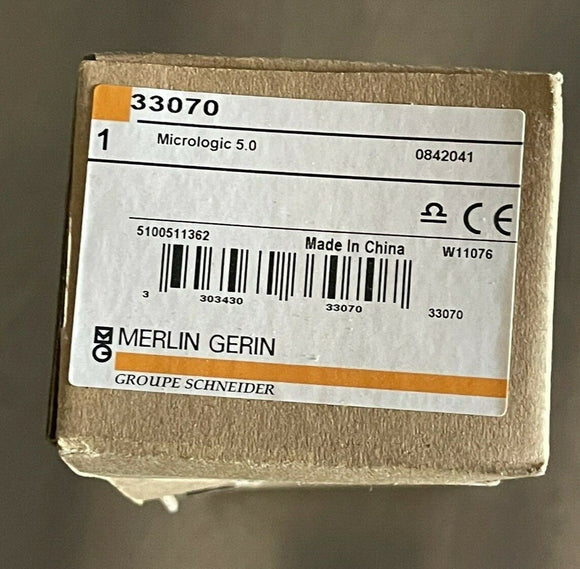

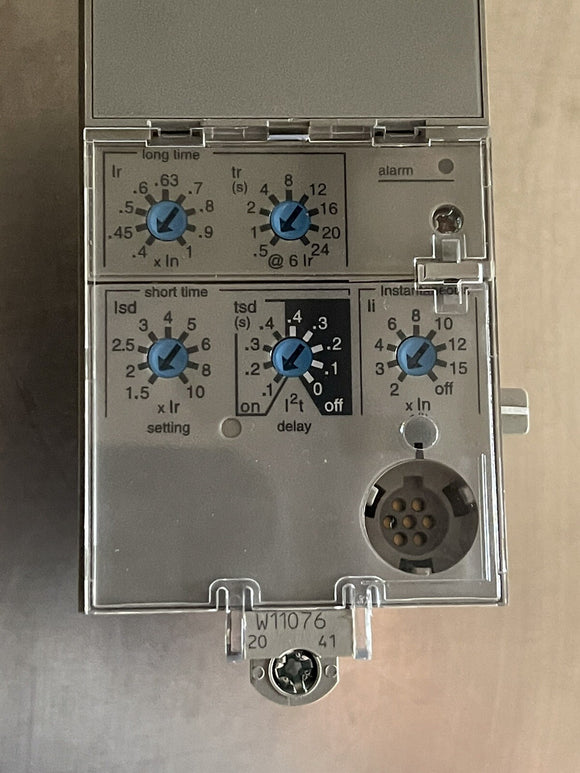

SCHNEIDER ELECTRIC 33070 TRIP UNIT MICROLOGIC 5.0

SPECIFICATIONS:

• Type: Control Unit
• Trip unit name: Micrologic 5.0
• Trip unit technology: Electronic
• Range compatibility: Masterpact NT, Masterpact NW, Compact NS, Masterpact MT, PowerPact P-Frame, PowerPact R-Frame,
• Application: Distribution
• Number of poles: 4P, 3P
• Protected poles description: 3t, 3t + N/2, 4t
• Trip unit protection functions: Selective protection
• Protection type:
  • For short time short-circuit protection
  • For overload protection (long time)
  • For instantaneous short-circuit protection
• Trip unit rating:
  • 630 A at 50 °C
  • 800 A at 50 °C
  • 1000 A at 50 °C
  • 1250 A at 50 °C
  • 1600 A at 50 °C
  • 2000 A at 50 °C
  • 2500 A at 50 °C
  • 3200 A at 50 °C
  • 4000 A at 50 °C
  • 5000 A at 50 °C
  • 6300 A at 50 °C
• Network type: AC
• Network frequency: 50/60 Hz
• Circuit breaker mounting mode: Fixed, Drawout
