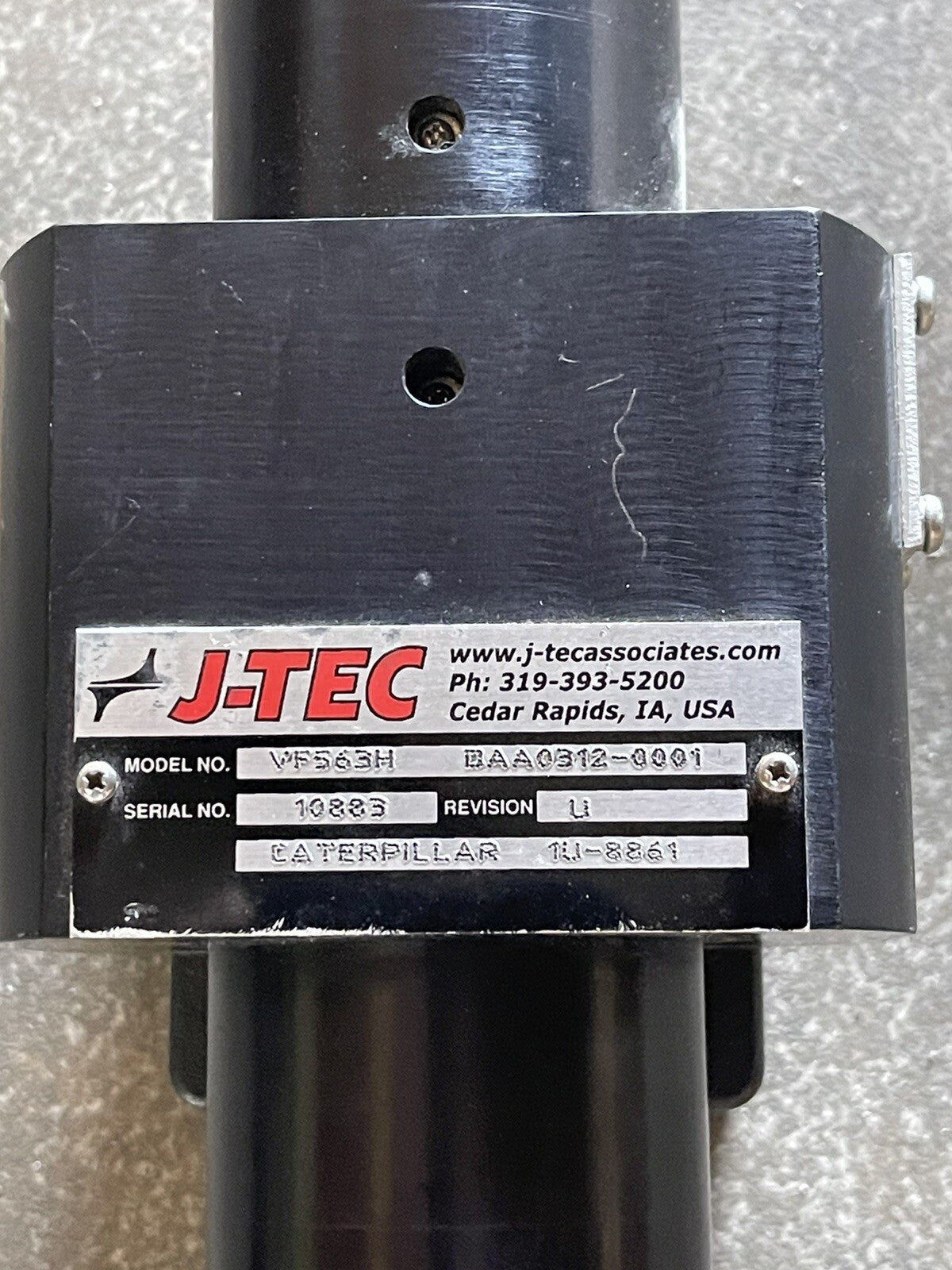

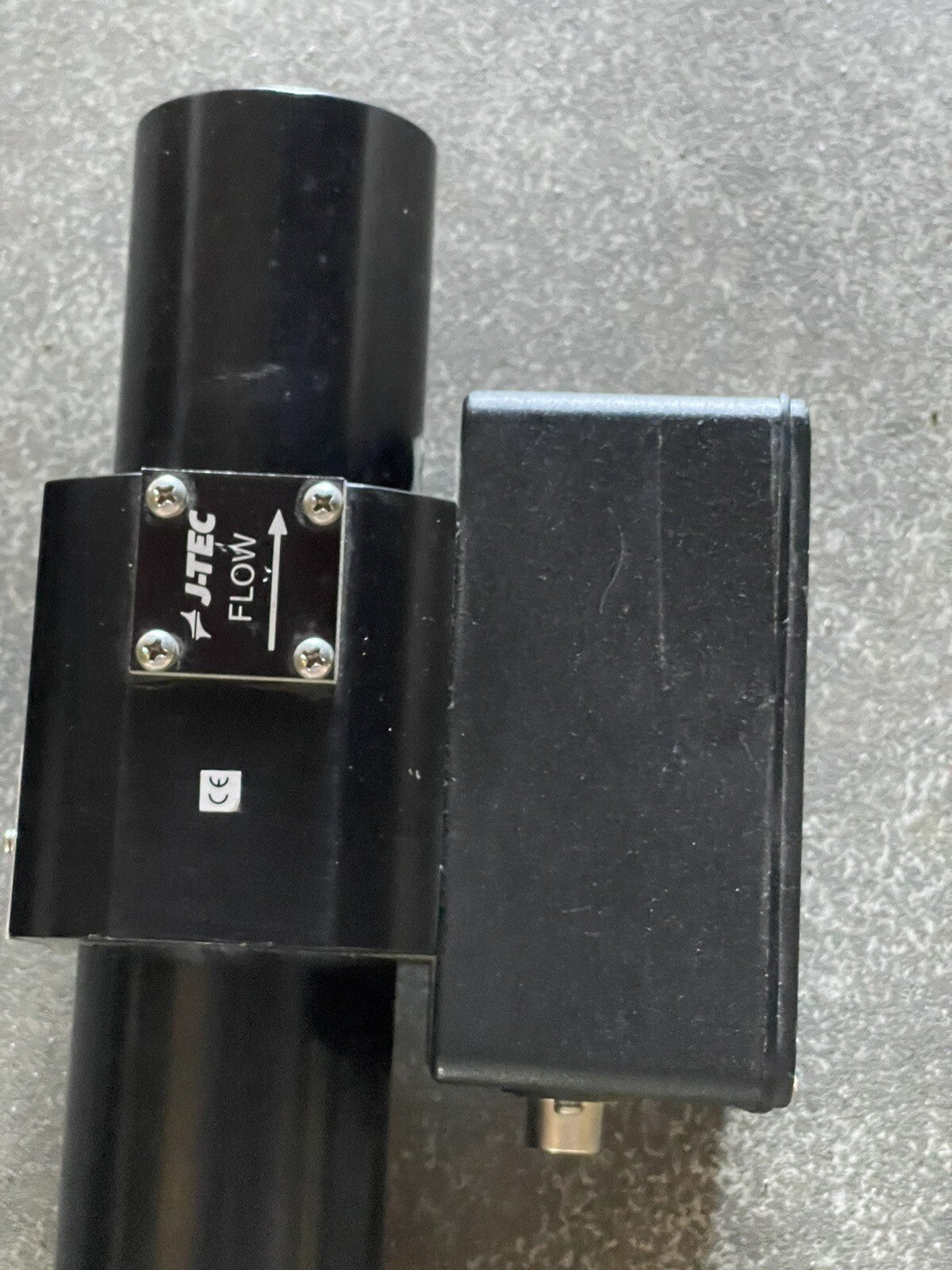

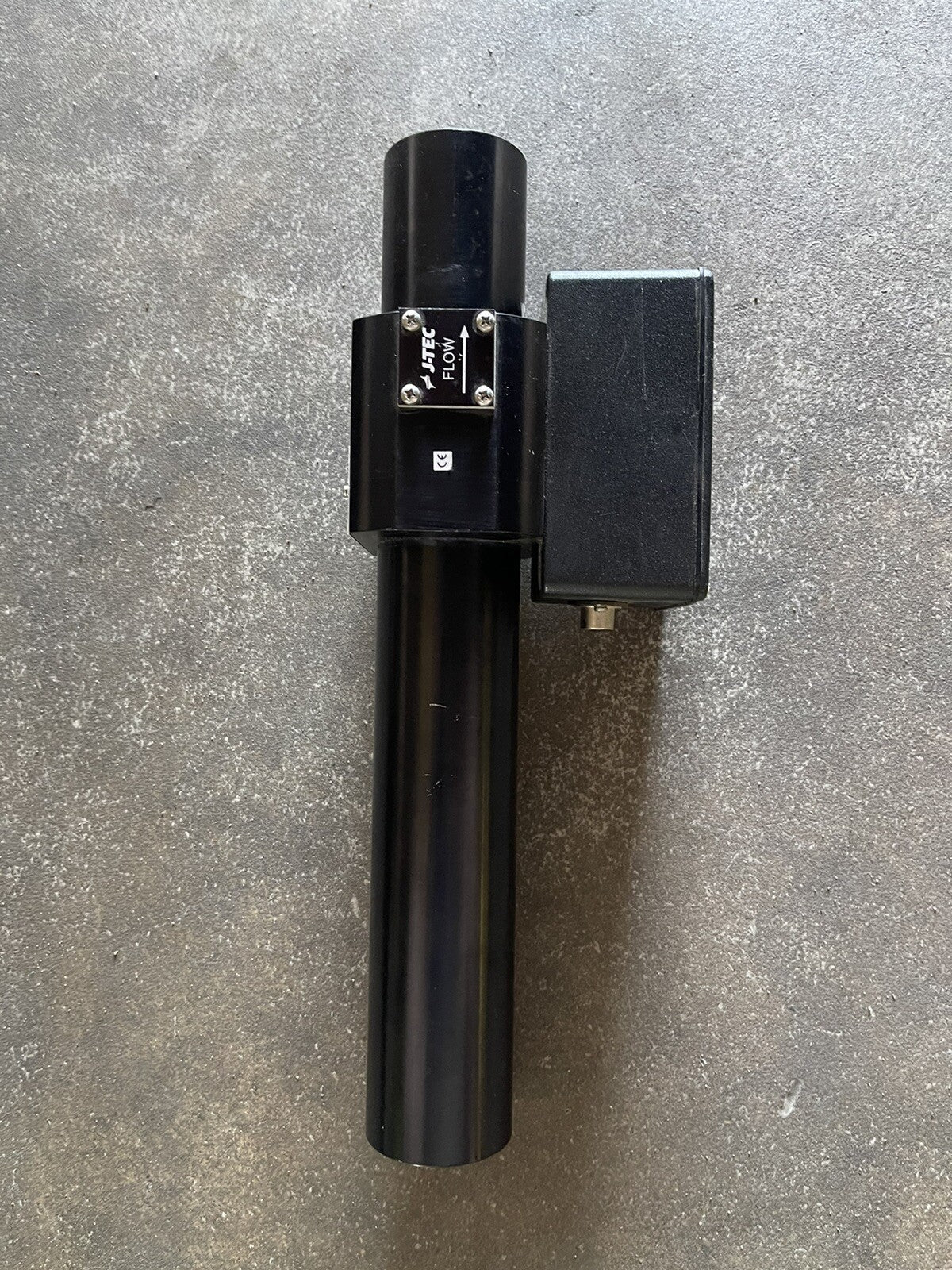

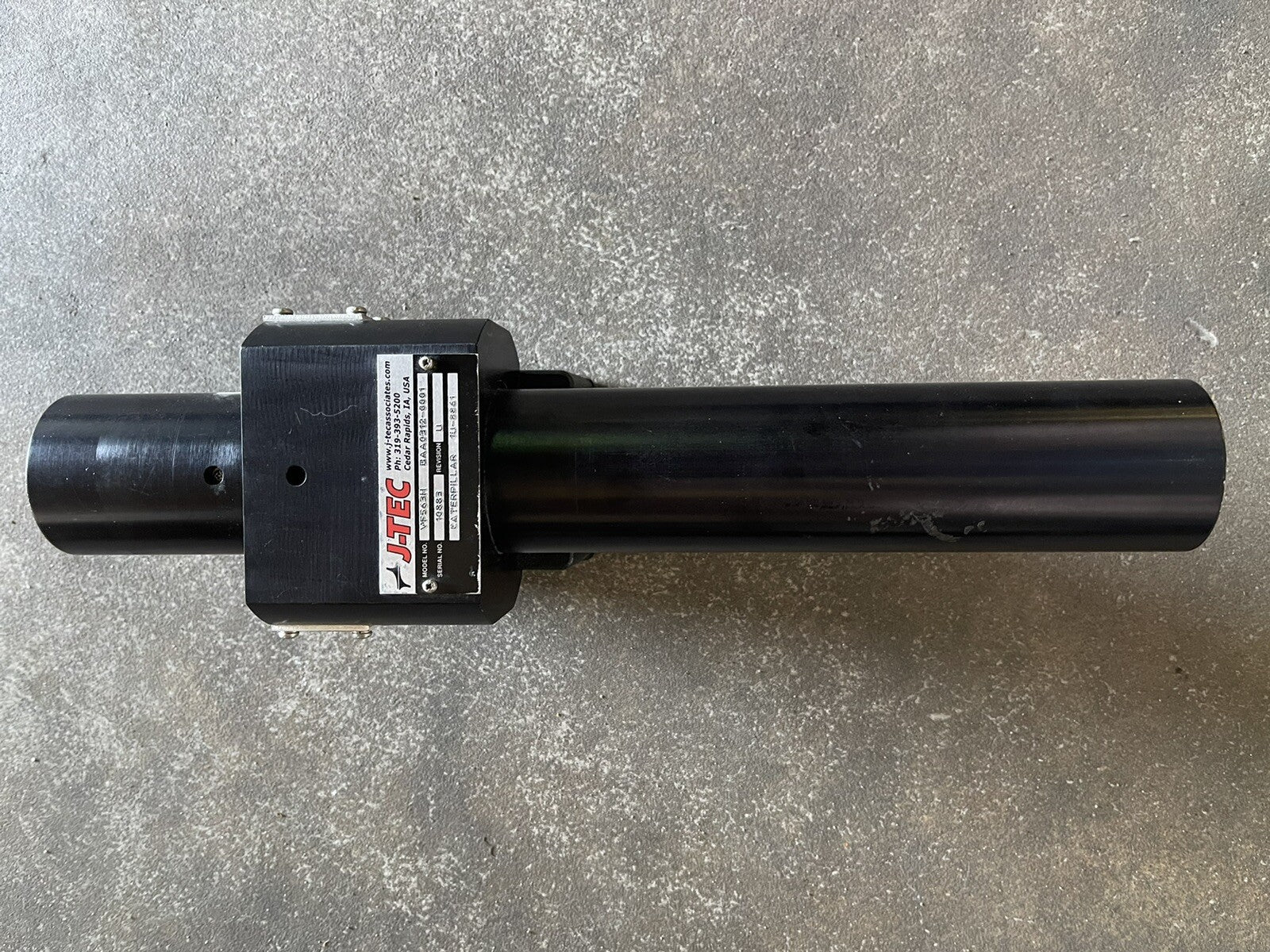

J-TEC VF563H BLOW-BY FLOW METER
(CAT PART: 1U-8861)
SPECIFICATIONS:
- Item: VF563 Series Blow-By Flow Meter
- Manufacturer: J-Tech
- MPN: VF563H
- Caterpillar Part: 1U-8861
- Operating temperature: 0° to 200°F (-18° to 93°C)
- Operating pressure: -5 to 30 PSIG (-0.34 to 2.1 BARg)
- Accuracy: ± 2% full scale
- Repeatability: ± 0.5% of reading
- Input power: +12 to +24 VDC at 35 mA
- Outputs: 0 to 5 VDC, Frequency or Optional Handheld Display
- Construction: Anodized aluminum
- Ambient temperature limits: -20° to 150°F (-28° to 66°C)
- Response Time-Analog/Freq: 100 milliseconds
- Notes: When used with the 8T-2701 Indicator, the VF563H (1U-8860) can be used to measure the blowby on any engine within the blowby range of 94 to 1888 L/min (200 to 4000 cfh). This includes the larger Caterpillar D300, 3500 and 3600 series engines.
