DSGCANUSA, P176CJN53, 1/C, 58 kV SPLICE FOR XLP/EPR NONSHIELDED POWER CABLES

$399.00

SKU: P176-CJN53,CJN53

Available
Request Shipping Quote

Need a shipping quote? Just fill out our contact form. We pride ourselves on competitive rates and ship anywhere in the continental US.

Warranty Service

We back all HUAYEE equipment with a three-year warranty that begins the day we ship it.

Click here to visit our eBay Store

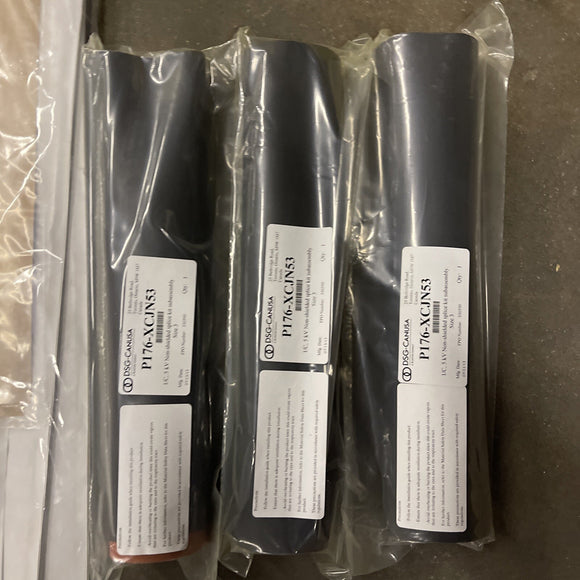

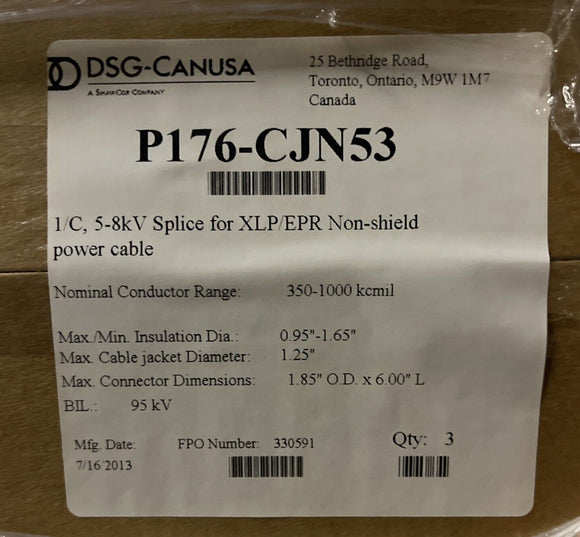

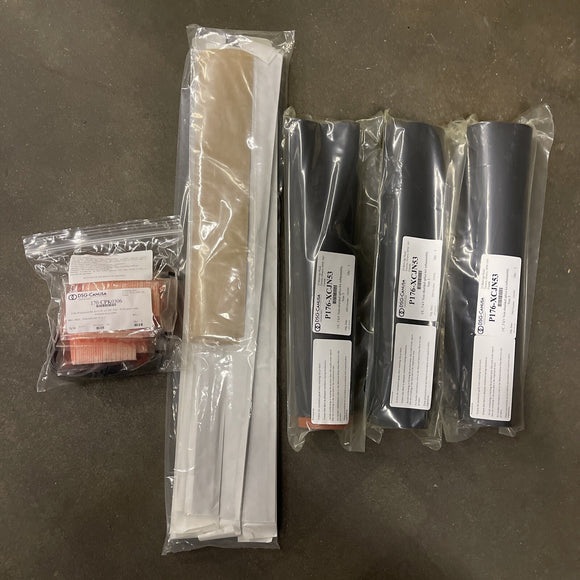

DSG-CANUSA, P176-CJN53, 1/C, 5-8 kV SPLICE FOR XLP/EPR NON-SHIELDED POWER CABLES

Our items are industrial surplus. Original packaging may have shelf wear or be damaged. The item itself will be new and unused.



SPECIFICATIONS:


  • Item: Splice for XLP/EPR Non-shield power cable
  • MPN: P176-CJN53
  • Nominal Conductor range: 350-1000 Kcmil
  • Min./Max. Insulation Dia.: 0.95" - 1.65"
  • Max. Cable Jacket Diameter: 1.25"
  • Max. Connector Dimensions: 1.85" OD x 6.00" L
  • BIL: 95 kV
